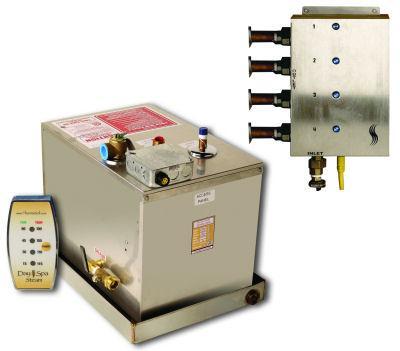

ThermaSol DS-250
Day Spa Series 12kW Steam Bath Generator
Model: DS-250
SKU: DS-2-250
The ThermaSol DS-250 is a 12kW steam generator designed for day spas and hotels and can service up to 4 steam shower enclosures with combined dimensions of up to 1,000 adjusted cubic feet (ACF).
Description
The ThermaSol DS-250 is designed for day spas and hotels and can service up to 4 steam shower enclosures with combined dimensions of up to 1000 adjusted cubic feet (ACF).
The high-performance, low-maintenance DS-250 generator is designed to meet the needs of professional day spas and resorts. The unit is constructed of durable stainless-steel inside and out, resulting in years of dependable operation. The generator features a split-tank design which helps ensure the longevity of the unit.
The included steam distribution system module allows you to deliver steam to each room independently or simultaneously.
Features
- Industrial grade, serviceable heating element
- Non-pressurized vessel
- Operates two, three, or four steam room environments
- Integral drain pan with 3/4" NPT fitting
- Stainless steel design inside and out
- Durable electronic components
- Can be installed up to 50 feet from the room
- Hardware Kit provided
- Large capacity tank size
- CSA/CUL listed
- ASME safety valve
Includes
- 1 Generator
- In-Room Controls (2,3, or 4)
- Commercial Steamheads (2,3, or 4)
- Installation manual
- Limited Warranty
Specifications
| Model | DS-250 |
|---|---|
| Minimum Adjusted Cubic Feet | 450 |
| Maximum Adjusted Cubic Feet | 1000 |
| Kilowatt Rating (KW) | 12 kW |
| Shipping Weight | 46 lbs |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1-1/16" |
| Generator Control Connection | 6 Pin, Snap-In Connector |
| Generator Control Cable | 50', 6 Conductor, 22 AWG, Shielded Cable |
| Length | 18-3/4" |
| Width | 13-3/4" |
| Height | 16" |
| Number of Rooms | 2, 3, or 4 (DS-2-250=2rooms, DS-3-250=3rooms, DS-4-250=4rooms) |
