ThermaSol DS-650
Day Spa Series 20kW Steam Bath Generator
Model: DS-650
SKU: DS-2-650
ThermaSol DS-650 steam generator is 20kW and designed for day spas and hotel steam showers. It can service up to 4 steam shower enclosures with combined dimensions of up to 2,600 adjusted cubic feet (ACF).
Description
The ThermaSol DS-650 is designed for day spas and hotels and can service up to 4 steam shower enclosures with combined dimensions of up to 2600 adjusted cubic feet (ACF).

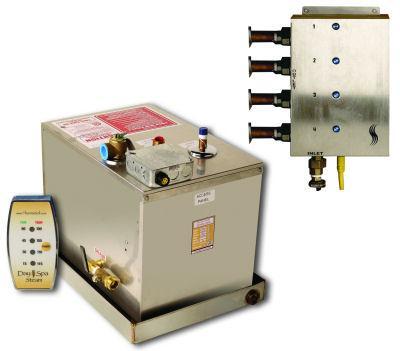

The high-performance, low-maintenance DS-650 generator is designed to meet the needs of professional day spas and resorts. The unit is constructed of durable stainless-steel inside and out, resulting in years of dependable operation. The generator features a split-tank design which helps ensure the longevity of the unit.
The included steam distribution system module allows you to deliver steam to each room independently or simultaneously.
Features
- Industrial grade, serviceable heating element
- Non-pressurized vessel
- Operates two, three, or four steam room environments
- Integral drain pan with 3/4" NPT fitting
- Stainless steel design inside and out
- Durable electronic components
- Can be installed up to 50 feet from the room
- Hardware Kit provided
- Large capacity tank size
- CSA/CUL listed
- ASME safety valve
Includes
- 1 Generator
- In-Room Controls (2,3, or 4)
- Commercial Steamheads (2,3, or 4)
- Installation manual
- Limited Warranty
Specifications
| Model | DS-650 |
|---|---|
| Minimum Adjusted Cubic Feet | 1300 |
| Maximum Adjusted Cubic Feet | 2600 |
| Kilowatt Rating (KW) | 20 KW |
| Shipping Weight (Lbs.) | 46 lbs |
| AC Voltage | 240V AC |
| Phase | Single Phase |
| Nominal Amperage | 2 Circuits, 46 Amps Each |
| Recommended Protective Device | 2 Circuits, 50 Amps Each |
| Recommended Minimum Copper Wire Supply | 2 Circuits, 8 AWG Each |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1-1/16" |
| Generator Control Connection | 6 Pin, Snap-In Connector |
| Generator Control Cable | 50', 6 Conductor, 22 AWG, Shielded Cable |
| Width | 18-3/4" |
| Depth | 13-3/4" |
| Height | 16" |
