Amerec ADK
Quantity:
Automatic Drain System, 3/4" NPT, AK/3K Series
Model: ADK
SKU: 9210-200
ADK Automatic Drain Valve Kit for AK Series generators. Automatically drains and flushes tank after each steam bath. Order one (1) ADK drain for each generator when ordering ganged systems.
Description
The ADK automatic drain valve, automatically drains the steam generator tank by gravity, following each steam bath and flushes water through the tank to reduce sediment build up and provide longer element life. The tank remains empty until the next steam bath, when the tank is refilled with fresh water for a more pleasant bathing experience. One drain is needed per generator installed.
Features
- For use with 3-element steam generators
- .04A, motorized actuation, 50 Hz
- Two position, normally open
- Brass valve body with 3/4” NPT connections
- Two lead integral electrical lead for terminal connection
- Measures 8-1/2”L x 4”H x 2-3/8”W
- Gravity drain

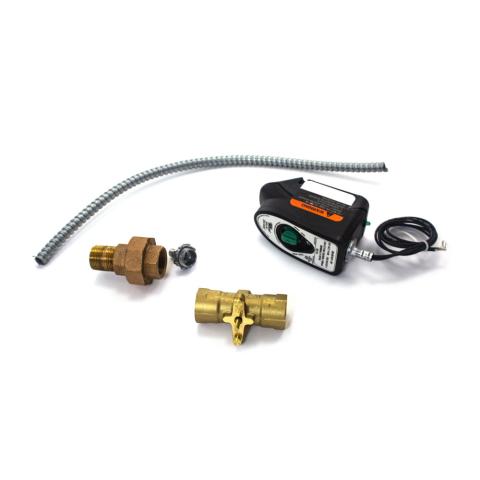

Includes
- Drain Valve
Specifications
| Model | ADK |
|---|---|
| Shipping Weight | 3 lbs |
| Drain Connection | 3/4" NPT |
| Width | 8-1/2" (Includes Mounting Fittings) |
| Depth | 2-3/8" |
| Height | 4" |
Technical
Installation and Operation Manual
