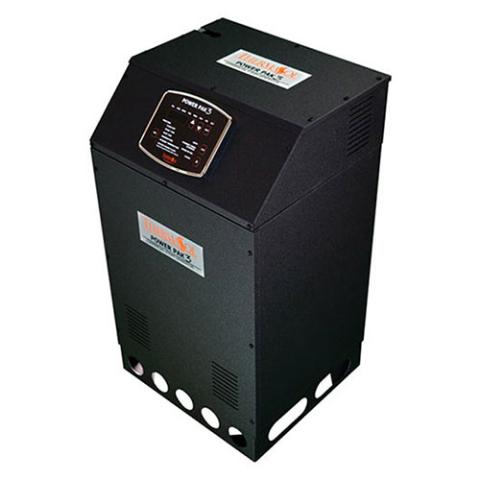

ThermaSol PP24LR
PowerPak Series 24kW Steam Shower Generator
Model: PP24LR
Designed with durability in mind by using a split tank design to enhance performance and lifespan the ThermaSol PP24LR is a must have. It is a 24kW commercial generator for health club steam rooms larger than 1000 cubic feet (CF). The ThermaSol PowerPak generators give you constant steam at a constant rate.
See Shipping Tab
Description
Designed with durability in mind by using a split tank design to enhance performance and lifespan the ThermaSol PP24LR is a must have. It is a 24kW commercial generator for health club steam rooms larger than 1000 cubic feet (CF). The ThermaSol PowerPak generators give you constant steam at a constant rate.

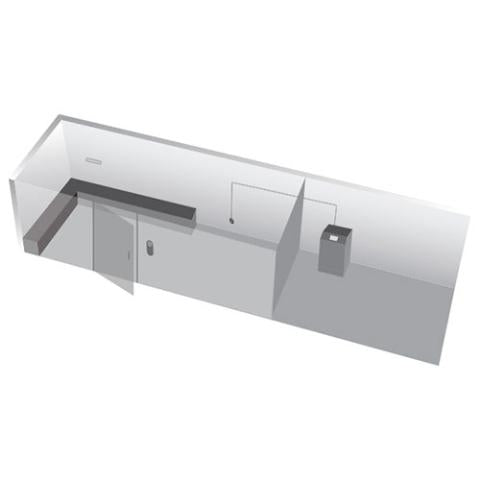

This generator can be installed up to 50 feet from the steam room with no additional drain line required. The cleaning system uses the steam room drain making cleanup one less thing to worry about. Along with all access from front & top panel to give you ease with any service needed.
See Shipping Tab
Features
- Delivered fully assembled
- Split tank design
- Can be located up to 50 feet from steam room
- No additional drain line required
- Stainless steel tank
- Corrosion resistance Incoloy heating elements
- All access from and top panel
- 18 month parts and labor warranty
Includes
- PowerPak Series Generator
- Temperature Sensor & 50' lead wire

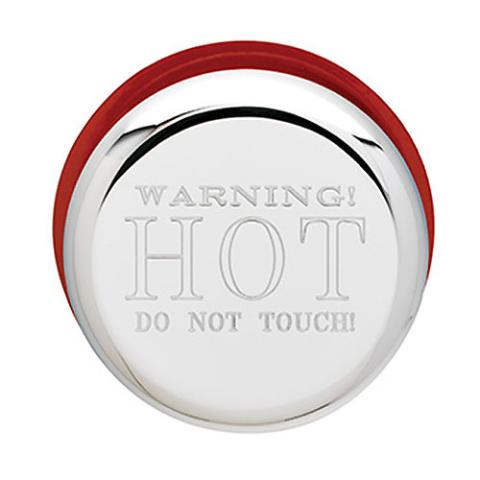

- Polished Chrome Steam head

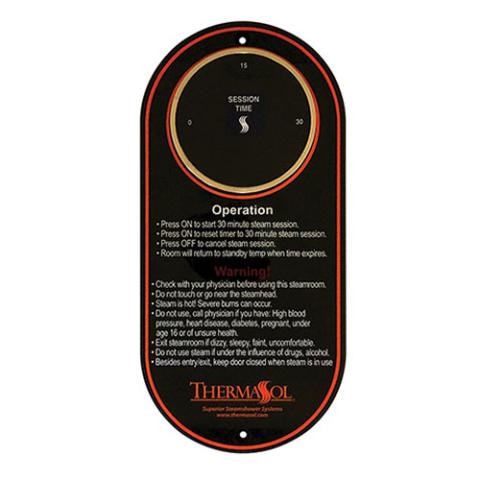

- Digital Timer & M8 cable
- Warranty
Specifications
| Model | PP24LR-240 |
|---|---|
| Input Voltage | 208-240VAC , 3-Phase |
| Kilowatt Rating | 24 kW |
| Maximum Amperage | 58 AMPS |
| Overcurrent Protection Size | 70 AMPS |
| Water Inlet | 3/8" Compression |
| Steam Outlet | 1" NPT |
| Safety Valve | 3/4"NPT |
| Electrical Connection | Hardwired |
| Model | PP24LR-480 |
|---|---|
| Input Voltage | 480VAC, 3-Phase |
| Kilowatt Rating | 24 kW |
| Maximum Amperage | 29 AMPS |
| Overcurrent Protection Size | 40 AMPS |
| Water Inlet | 3/8" Compression |
| Steam Outlet | 1" NPT |
| Safety Valve | 3/4" NPT |
| Electrical Connection | Hardwired |
Technical
Installation & Operation Manual
Specification Sheet for PP24LR-240
Specification Sheet for PP24LR-480
Shipping
The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project's success.
