Steamist 220
Available Finishes:Matte Black
Available Styles:Transitional
Quantity:
On/Off Secondary Control
Model: 220
SKU: 220-MB

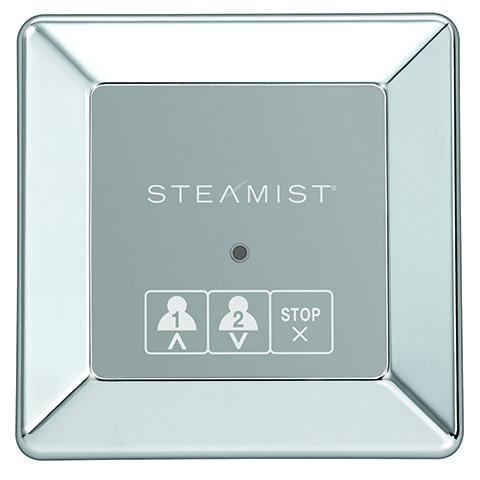

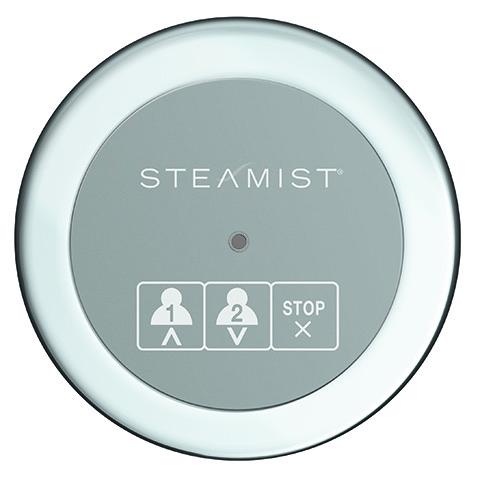

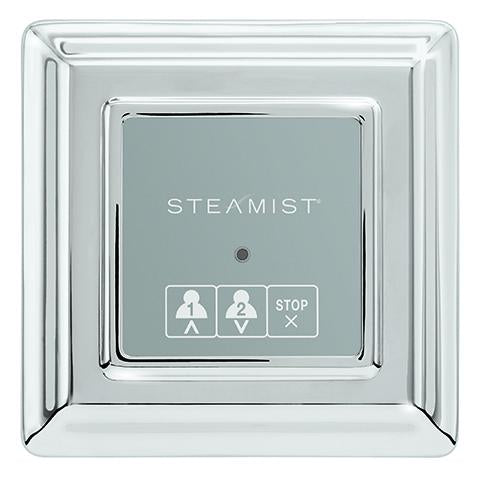

The Steamist 220 On/Off secondary control is designed for use with the TSG and SMP Series of generators, the Steamist 220 digital control provides users with on/off control of the steam shower. The wall-mounted Steamist 220 installs outside of the steam room and works in conjunction with the Steamist 550, 450, and 250 controls.
Description
The wall-mounted Steamist 220 installs outside of the steam room and works in conjunction with the Steamist 550, 450, and 250 controls.
The Steamist 220 control is available in three styles and seven designer finishes.
Features
- Simple start/stop switch
- Indicator light
- Outside the steam/shower enclosure installation
- Available in Transitional, Traditional, and Round designer styles
- Available in Polished Chrome, Brushed Nickel, Polished Nickel, Polished Brass, Polished Gold, Brushed Bronze and Oil Rubbed Bronze designer finishes
- Low voltage operation
- For use with TSG and SMP Series generators
Includes
- 220 Surface-mounted control, 1-1/4" deep
- 6-Pin, 6-wire control cable, 25' long with "snap-in" connectors
- 6-Pin, control cable coupler
- Control cable strain relief clamp
- Installation and operation manual
- Limited warranty
Specifications
| Model | 220 |
|---|---|
| Shipping Weight | 4 lbs |
| Generator Control Connection | 6 Pin, Snap-In Connector |
| Generator Control Cable | 25', 6 Conductor, 22 AWG, Shielded Cable |
Technical
Installation and Operation Manual
