Steamist AD
Steamist AD

Steamist AD

$564.00
Voltage Phase:240V
Quantity:

Automatic Drain System, 1/2" NPT

Model: AD

SKU: AD-240

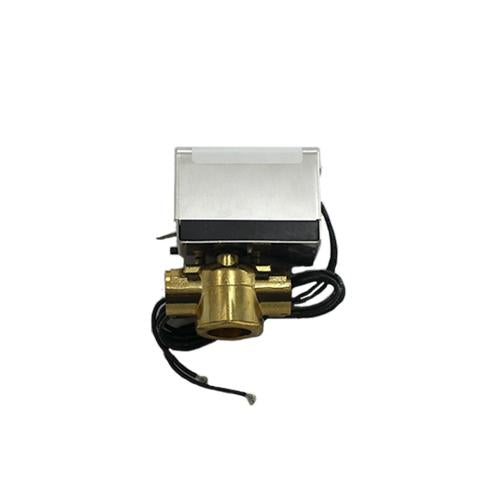

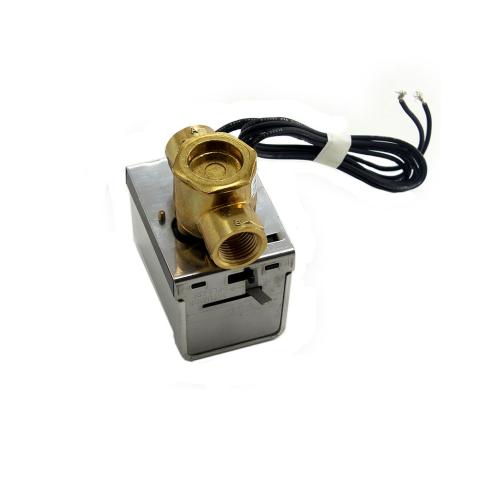

Automatic draining is available on Steamist SMP & TSG steam generators with the installation of this motorized, electronically operated drain valve.

Description

Automatic draining is available on Steamist SM & TSG steam generators with the installation of this motorized, electronically operated drain valve. After each steam bathing experience, the steam generator contents will automatically drain by gravity, leaving the tank empty for next use. One drain per steam generator.

Features

  • Available in 240V or 208V
  • 04A, motorized actuation, 50 Hz
  • Two position, normally closed
  • Brass valve body with 1/2” NPT connections
  • Two lead integral electrical lead for terminal connection at generator
  • Gravity Drain
  • Measures 3-1/4”L x 4-1/4”H x 2-1/2”W
  • For steam bath generators beginning with serial# 1037267

Includes

  • AD-900 Auto Drain Valve
  • Conduit
  • Connectors

Specifications

Model AD-900
Connection 1/2" NPT
Length 3-1/4"
Width 2-1/2"
Height 4-1/4"

Technical
