ThermaSol SEMR-SVSQ
Signature Series Steam Shower Kit, Modern Recessed Style SV Square
Model: SEMR-SVSQ
Designed for use with the ThermaSol Pro Series or AF Series of steam generators, the ThermaSol Signature Series control kit allows users to control time and temperature settings, on/off and pause modes, lighting, and music from inside the steam shower.
Steam Generator Sold Separately
See Technical tab for Finish availability
Description

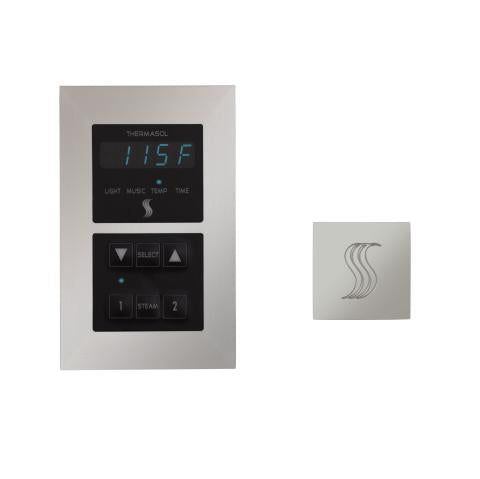

The ThermaSol Signature Series modern recessed control features a digital display and easy-to-use membrane touch pad to maintain your steam room. The control offers the ability for two users to program their own personalized settings.
The Signature Series in-shower control kit features ThermaSol’s CAN-bus technology for intelligent two-way communication between the generator and the control. This control operates with the optional Serenity Light, Music, and Rain System.
With the Signature Series steam shower control, users can activate the Auto PowerFlush cleaning system which drains the generator tank to prevent sediment build-up.
The control kit comes complete with a matching finish retractable steam head. The steam head has a built-in aromatherapy well so that you may add essential oils to the steam shower.
The ThermaSol Signature Series steam control is available in traditional and modern recessed styles and in fifteen designer finishes.
See Technical tab for Finish availability
Features

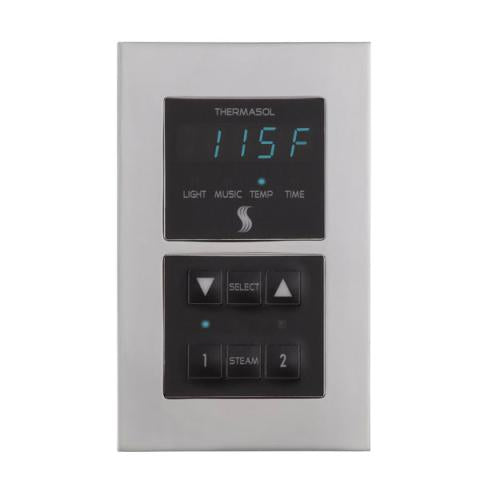

SEMR Signature Series Control
- Time and temperature control
- Two preferred time and temperature memory settings
- Easy-to-use, membrane touch pad
- Time of day display
- Digital readout display
- Settable 60 minute time cycle
- Low voltage operation
- On/off and pause modes
- Auto PowerFlush pressurized drain system activation
- Operates optional Serenity Light, Music & Rain System
- Available in Traditional and Modern Recessed decorator styles
- Available in Polished Chrome, Antique Brass, Antique Copper, Antique Nickel, Black Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Polished Copper, Polished Gold, Polished Nickel, Satin Brass, Satin Chrome, Satin Nickel and White designer finishes
SteamVection Steam Head
- Integral reservoir for a scented steam bath
- Available in Round or Square
- Available in Polished Chrome, Antique Brass, Antique Copper, Antique Nickel, Black Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Polished Copper, Polished Gold, Polished Nickel, Satin Brass, Satin Chrome, Satin Nickel and White designer finishes
Includes
- SEMR surface mounted control, 3-1/2"W x 5-1/2"H x 1/2"D
- SteamVeaction Square steam head, 1-3/4" diameter
- RTV silicone sealant, .5 oz tube
- Installation and operation manual
- Limited warranty
Specifications
| Control Model | SEMR |
|---|---|
| Construction | 6061 Billet Aluminum |
| Function Lights | 6 cool blue LED lights |
| Interface | 6 button multi-function keypad |
| Width | 3.5" |
| Depth | 0.6" |
| Height | 5.6" |
| Steamhead Model | SVSQ |
| Material | Brass Alloy |
| Connection | 1/2" NPT |
| Shipping Weight | 1 lb |
| Width | 1.75" |
| Depth | 1.9" |
| Height | 1.75" |
