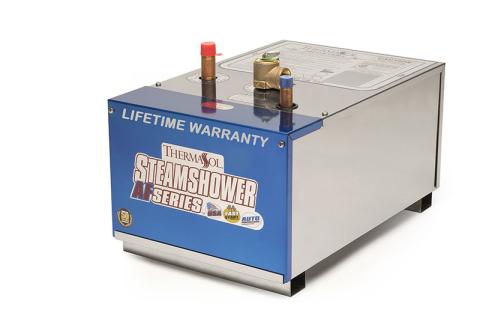

ThermaSol SSA-575

ThermaSol SSA-575

Sale price$4,025.00
Quantity:

Steamshower AF Series 15KW Steam Bath Generator, Thermasol

Model: SSA-575

The ThermaSol SSA-575 15kw steam shower generator is designed for home steam bath enclosures from 395 to 575 cubic feet. Its fully-integrated digital network system makes it the perfect choice for residential bathing installations.

Description

Made in America of durable and corrosion-resistant stainless-steel, the SSA-575 steam generator is designed to provide years of exceptional performance and maintenance-free operation. The unit includes industrial-grade heating elements, durable electronic components, and a variety of other features.

The generator features an Auto PowerFlush inner-tank cleaning system which protects the generator from sediment build-up and calcification. The generator features a split tank design to ensure the longevity of the unit.

As a member of the AF Series line of generators, the SSA-575 is equipped with CAN-bus digital technology for safe and reliable communication between the generator and the control. The unit features FastStart technology so that you may start bathing quickly. The SSA-575 generator is engineered to provide a consistent flow of steam at a constant rate without any unexpected temperature fluctuations.

The unit requires the use of a ThermaTouch control, MicroTouch control, or Signature Series Control kit for operation. Controls can be paired with the Solitude Wireless mobile app to control features such as bathing duration and temperature of the steam bath. Each control package option is available in a variety of attractive finishes to best suit your preferences.

The SSA-575 has a 15-kilowatt power rating and accepts voltage in the range of 208V-240V, single-phase (1-PH) configuration. ThermaSol AF Series generators are available in a variety of power ratings to best suit your needs.

The SSA-575 is fully serviceable, carries a limited lifetime warranty, and is UL and CE listed for unmatched quality and safety.

SteamSaunaBath is proud to be an authorized ThermaSol partner and offer the full line of ThermaSol products.

We guarantee the lowest price. If you see a lower price advertised for this item elsewhere, give us a call!

Note: Generators sizing are listed based on Thermasol's theory on "Simple Sizing" of Cubic Feet = Length X Width X Height. No adjustments for materials.

Features

  • "Whisper Quiet" operation
  • Industrial grade, serviceable heating element
  • Stainless steel design inside and out
  • Durable electronic components
  • Electronic water-level safety system
  • Secondary electronic water-level control system
  • Mechanical water-level control operating system
  • Auto PowerFlush pressurized maintenance system
  • Water tight data link control cable
  • Low voltage safety control circuits
  • Operates with waterproof sound and light system
  • CSA/CUL listed
  • ASME safety valve

Includes

  • 50' Long data link control cable
  • Brass SteamVection steam head housing
  • Installation and operation manual
  • Limited Warranty

Specifications

Model SSA-575
Minimum Cubic Feet 395
Maximum Cubic Feet 575
Kilowatt Rating 15 KW
Shipping Weight 34 lbs
AC Voltage 230V AC
Phase Single Phase
Nominal Amperage 69 Amps
Recommended Protective Device 90 Amp
Water Supply Connection 3/8" NPT
Generator Steam Line Connection 1/2" NPT
Steam Head Connection 1/2" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve PSIG 15 PSIG
Control "Rough In" Cut Out 1-1/16"
Generator Control Connection CAN-Bus Connection
Generator Control Cable 50' Data Cable
Width 17"
Depth 11-1/2"
Height 12"

Technical

Required for Operation:

ThermaSol ThermaTouch 10 Steam Shower Kit

Price: $3,175.00


ThermaSol SET-SVRD

Price: $1,570.00


ThermaSol MTC-SVRD

Price: $1,130.00
