Steamist GPXLAD
Generator Accessory Package
Model: GPXLAD
SKU: GPXLAD-240
The Steamist GPXLAD Generator Accessories Package includes the components recommended for field installation of Steamist TSG or SMP 20-30kw steam generators.
Description

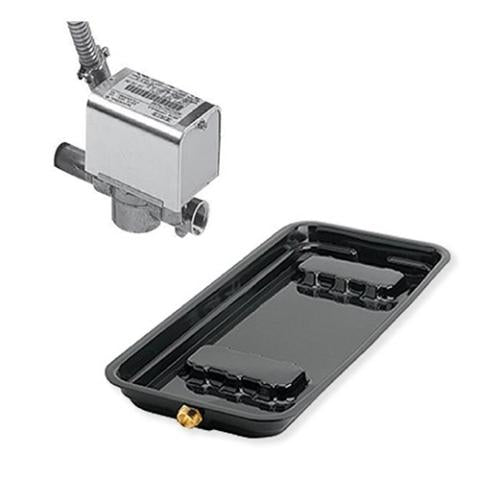

The GPXLAD steam shower accessories package comes equipped with an automatic drain valve and a generator pan. The generator pan features elevated support for the generator and solid-brass plumbing connection. The Auto Drain system opens and drains the system after the water in the generator cools.
Specify the voltage when ordering the Auto Drain. The voltage (240V or 208V) should match the voltage of your steam bath generator.
If your project calls for Total Sense Generators using more than one steam generator, order a quantity of generator accessory packages equal to your number of generators.
Features
- Components recommended for field installation
- Elevated support for generator
- Solid brass drain pumping connection
Includes
- Generator Pan
- Auto Drain (240v or 208V)
Specifications
| Model | GPXLAD |
|---|
| Model | GENPAN-XL |
|---|---|
| Material | Galvanized |
| Connections | 3/4" MGHT male threaded NPT and 1/2" NPT female brass connection |
| Width | 14" |
| Length | 24" |
| Height | 2" |
| Model | AD-900 |
|---|---|
| Connection | 1/2" NPT |
| Length | 3-1/4" |
| Width | 2-1/2" |
| Height | 4-1/4" |
Technical
GENPAN-XL Installation Manual
GENPAN-XL Data sheet
Auto Drain Data Sheet
