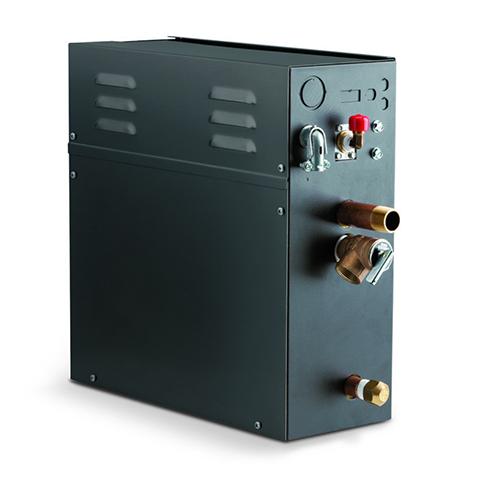

Steamist SMP-15
SM Plus Series 15kW Steam Bath Generator
Model: SMP-15
SKU: SMP-15-208/3
The Steamist SMP-15 is a 15-kW home steam shower generator engineered for steam rooms from 551 to 675 adjusted cubic feet (ACF).
Required operating control sold separately.
Description
As a member of the Steamist Plus series generators, the Steamist SMP-15 provides homeowners with pleasant and consistent steam bathing experiences.
Durably constructed of corrosion-resistant stainless-steel, the SMP-15 provides years of maintenance-free operation. The generator is equipped with professional grade parts and heating elements to ensure the optimal performance of the unit. The SMP-15 steam generator features SteadySteam technology to maintain the user’s temperature preferences each bathing session.
The compact design of the generator allows the unit to be installed conveniently out of site. Typical installation locations include vanities, closets, insulated attics, and basements.
The Steamist SMP-15 has a 15-kilowatt power rating. The generator is available in 208V/240V 1-phase (PH) configurations and 208V, 3-phase (PH) configurations.
Select the Steamist operating control option with features that best suit your bathing preferences. A Steamist control or control package is required for operation and is available in a variety of attractive finishes.
We highly recommend the Steamist Auto Drain Valve to help prevent harmful mineral buildup on the heating elements and reservoir, ensuring the longevity of the generator. The drain valve automatically drains the steam shower system after the water cools. For added convenience, the Auto Drain may be used with the available Steamist Generator Drain Pan.
The Steamist SMP15 carries a limited lifetime warranty and is fully serviceable. All Steamist SM-Plus residential steam generators are UL and CUL listed for unmatched quality and safety. Steamist SM-Plus generators are available in a variety of power ratings to best suit your bathing needs.
Features
- For steam baths sized from 551 to 675 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel Construction
- SteadySteam technology with 2-stage, industrial grade heating element
- Modular "snap-in" control connections
- Durable electronic components
- Electronic water-level control system
- Low voltage safety control circuits
- Solid-state circuitry
- Available Auto Drain automatic draining system
- Operates with inside/outside shower, on/off, time/temperature controls
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL 499
- UL/CUL Listed
- City of LA - Approved
- City of New York - M.E.A. Approved
Includes
- 15.0KW Steam bath generator, 17.75"L x 7.5"W x 15.5"H
- 6-pin, 6-wire control cable, 35' long with "snap-in" connectors
- Installation and operation manual
- Limited warranty
Specifications
| Model | SMP-15 |
|---|---|
| Minimum Adjusted Cubic Feet | 551 |
| Maximum Adjusted Cubic Feet | 675 |
| Shipping Weight | 41 lbs |
| Kilowatt Rating | 15.0 kw |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8” Compression Connection |
| Generator Steam Line Connection | 3/4” NPT |
| Steam Head Connection | 3/4” NPT |
| Drain Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve | 8 PSIG |
| Control "Rough In" Cut Out | 1-1/2” Diameter |
| Generator Control Connection | 6-Pin, Snap-In Connector |
| Generator Control Cable | 35’, 6-Conductor, 22 AWG, Shielded Cable |
| Width | 17-3/4" |
| Depth | 7-1/2" |
| Height | 15-1/2" |
| Clearance Width | 23-3/4" (30-3/4" w/ Auto Drain) |
| Clearance Depth | 19-1/2" |
| Clearance Height | 22" |
