Steamist HC-15
Steamist HC-15

Steamist HC-15

Sale price$7,500.00
Voltage Phase:208V/3PH
Quantity:

HC Series Commercial Steam Room Generator, 15kW

Model: HC-15

SKU: 61503

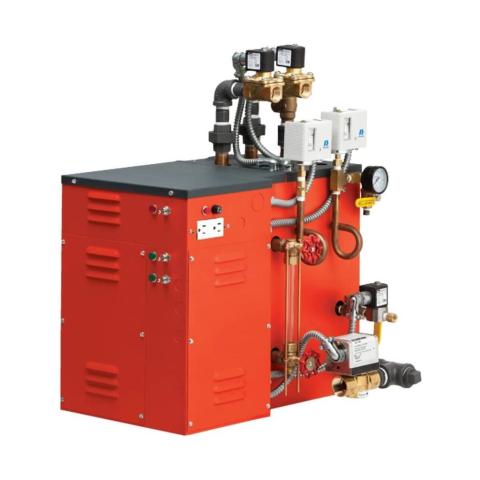

The Steamist HC-15 is a 15kW electric steam room boiler is engineered for the most demanding commercial health club steam showers that need dependable, around-the-clock operation, can power rooms with dimensions up to 620 adjusted cubic feet (ACF).

See Shipping Tab

Description

The HC-15 commercial steam generator can power rooms with dimensions up to 620 adjusted cubic feet (ACF).

The Steamist HC-15 comes with an industrial-grade heating element, a pressurized vessel for instant steam production, durable electronic components, a DCCP Digital Control Package, and a variety of other noteworthy features.

Health clubs, hotels, and commercial wellness facilities rely on HC Series steam generators for easy maintenance and hands-off, automated operation. The Steamist HC-15 is UL-listed and ASME-certified to ensure safety and quality. All HC Series generators are delivered factory wired and assembled to assure that each unit is working perfectly.

The HC-15 commercial steam boiler includes the programmable DCCP Digital Commercial Control Package which allows facility operators to remotely operate steam shower duration, temperature settings, weekly schedule presets, and power settings. Each additional steam room requires the use of the available SRP second room package.

The Steamist HC-15 generator is available in 208V single-phase (61501), 208V three-phase (61503), 240V single-phase (61500), 240V three-phase (61502), and 480V three-phase (61504) configurations.

We recommend the addition of the available Steamist DC-ABD Digital Automatic Blowdown Valve with your HC-15 unit. The DC-ABD Automatic Blowdown Valve automatically drains the boiler to prevent calcification and lime build-up, prolonging the life of the unit. The valve features a 24-hour clock that allows facility operators to preset drain times.

SteamSaunaBath is proud to be an authorized Steamist partner and offer the full line of Steamist products and parts.

We guarantee the lowest price. If you see a lower price advertised for this item elsewhere, give us a call!

SteamSaunaBath is the bathing environment experts. We specialize in steam room and sauna design, sales, installation, maintenance, and repair services. Our half-century of hands-on experience means that we are uniquely qualified to ensure the success of your bathing space and an unparalleled steam bathing experience. To contact a SteamSaunaBath Bathing Specialist, call: (800) 707-2862.

NOTE: Additional Freight Charges May Apply.

Features

HC Boiler

  • Industrial grade heating element
  • Pressurized vessel for instant steam operation
  • Durable electronic components
  • Built to ASME code
  • Available automatic system for daily blowdown
  • Operates with electronic steam room temperature control
  • Full 1” drain port
  • Operating, electronic high limit and ASME safety valve pressure systems
  • UL listed and built to ASME B & PV code
  • Sight glass

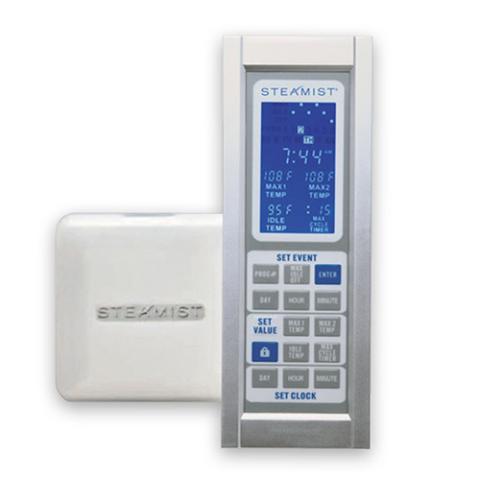

DCCP Digital Commercial Control Package

  • Digitial touchpad
  • Programmable time user control
  • "Idle" energy conservation mode
  • 7-day, 24-hour programmable timer
  • Up to 6 daily programmable settings changes

Includes

  • HC-PCMR Auxiliary Manual Reset Pressure Cutoff
  • DCCP Digital Command Center control with 50' cable
  • User Bypass Control with 50' cable
  • Room Sensor with 50' cable
  • Control Module
  • Steam Solenoid, factory installed
  • Steamhead with Cool Sense cover
  • Installation and operation manual
  • Limited warranty

Specifications

Model HC-15
Minimum Adjusted Cubic Feet 501
Maximum Adjusted Cubic Feet 620
Kilowatt Rating 15 Kw
Shipping Weight 150 lbs
Water Supply Connection 1/2" NPT
Generator Steam Line Connection 1/2" NPT
Steam Head Connection 1/2" NPT
Drain Connection 1/2" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve 15 PSIG
Control Sensor Cable 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 5/8" Diameter
Generator Control Connection 3 Wire Nuts
Generator Control Cable 3 Conductor, 22 AWG, Shielded Cable
Width 22-1/2"
Depth 19"
Height 28"

Shipping

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project success.

Technical

Required for Operation:
