Steamist HC-48
HC Series Commercial Steam Room Generator, 48kW
Model: HC-48
SKU: 64804
The Steamist HC-48 is a 48kW electric steam room boiler that is engineered for the heavy-duty, around-the-clock operation of the most demanding commercial health club steam showers.
See Shipping Tab
Description
The HC-48 can power steam baths with dimensions between 1,500 to 2,000 adjusted cubic feet (ACF).

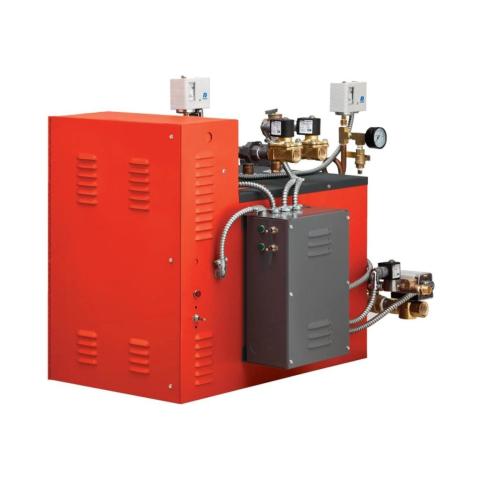

The Steamist HC-48 commercial steam generator features a 48-kilowatt industrial-grade heating element, a pressurized vessel for instant steam production, durable electronic components, a high-limit pressure control with manual reset, a DCCP digital control package, and a variety of other features.
Health clubs, hotels, sporting arenas, and commercial wellness facilities rely on the Steamist HC-48 commercial steam boiler for ease of maintenance and hands-off, automated operation. Steamist HC Series steam generators are UL-listed and ASME-certified to ensure safety and quality. HC units are delivered factory wired and assembled to assure that each unit is working perfectly.
The HC-48 steam shower generator comes with the programmable DCCP Digital Control Package which allows facility operators to control duration, max temperatures, idle temperatures, weekly operating schedules, and power settings. Each additional steam room requires the use of the available SRP second room package.
The Steamist HC-48 generator is available in 208V three-phase (64803), 240V three-phase (64802), and 480V three-phase (64804) configurations.
We recommend the addition of the available Steamist DC-ABD Digital Automatic Blowdown Valve with the Steamist HC-48. The DC-ABD Blowdown Valve drains the boiler tank to help prevent calcification and lime build-up of the unit. The valve includes a 24-hour clock that allows facility managers to pre-set generator drain times.
The Steamist HC-48 steam bath generator is available in 208V single-phase (63601), 208V three-phase (63603), 240V single-phase (63600), 240V three-phase (63601), and 480V three-phase (63604) configurations.
NOTE: Additional Freight Charges May Apply.
Features
HC Boiler
- Industrial grade heating element
- Pressurized vessel for instant steam operation
- Durable electronic components
- Built to ASME code
- Available automatic system for daily blowdown
- Operates with electronic steam room temperature control
- Full 1” drain port
- Operating, electronic high limit and ASME safety valve pressure systems
- UL listed and built to ASME B & PV code
- Sight glass

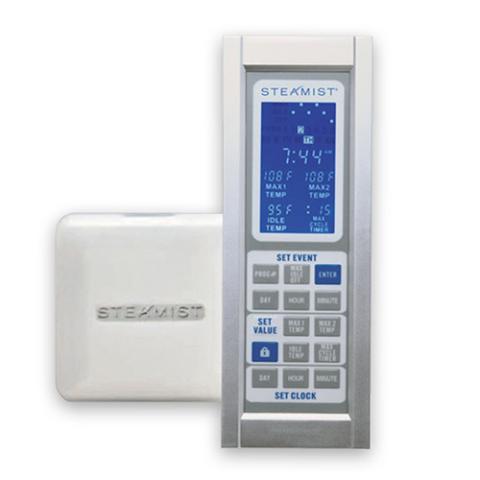

DCCP Digital Commercial Control Package
- Digitial touchpad
- Programmable time user control
- "Idle" energy conservation mode
- 7-day, 24-hour programmable timer
- Up to 6 daily programmable settings changes
Includes
- HC-PCMR Auxiliary Manual Reset Pressure Cutoff
- DCC Digital Command Center control with 50' cable
- User Bypass Control with 50' cable
- Room Sensor with 50' cable
- Control Module
- Steam Solenoid, factory installed
- Steamhead with Cool Sense cover
- Installation and operation manual
- Limited warranty
Specifications
| Model | HC-48 |
|---|---|
| Minimum Adjusted Cubic Feet | 1501 |
| Maximum Adjusted Cubic Feet | 2000 |
| Kilowatt Rating | 48 KW |
| Shipping Weight | 250 lbs |
| Water Supply Connection | 1/2" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 3/4" |
| Drain Connection | 3/4" |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve | 15 PSIG |
| Control Sensor Cable | 2 Conductor, 22 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 5/8" Diameter |
| Generator Control Connection | 3 Wire Nuts |
| Generator Control Cable | 3 Conductor, 22 AWG, Shielded Cable |
| Width | 39" |
| Depth | 22" |
| Height | 28" |
