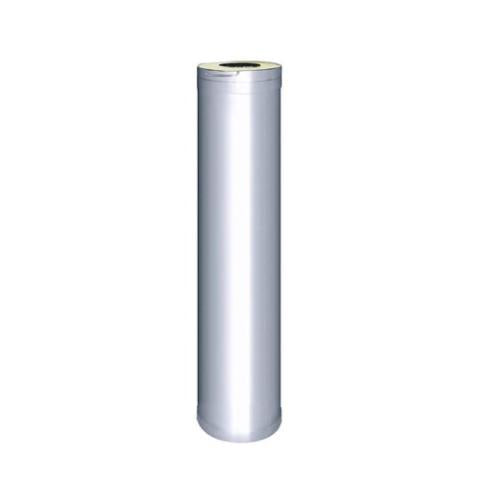

Harvia WHP1000
Quantity:
Sauna Wood Stove Chimney Extension, 1000mm, Stainless Steel
Model: WHP1000
SKU: WHP1000
The inventive Harvia WHP1000 steel chimney extension is designed to prevent movement caused by temperature changes. This chimney extension is made of classic stainless steel and can be installed both indoor and out.
Description
The joint mechanism and the supplementary parts are wound together while the smoke pipes are locked in place with grooves. These innovative attributes are how this Harvia 1000 mm stainless steel chimney extension prevents movement caused by temperature changes.
Features
- Innovative design
- Stainless steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
- 2 year warranty
Includes
- 1000mm stainless steel chimney extension
- 2 year warranty
Specifications
| Model | WHP1000 |
|---|---|
| Material | Stainless Steel |
| Flexural Strength- tensile strength | 16.4 ft (5m) |
| Non-vertical installations | Not Allowed |
| Wind Load | 6.5 ft (2m) above last support |
| Maximum spacing of lateral supports | 9.8 ft (3m) |
| Weight | 14.8 lbs |
| Diameter | 8.6" (220mm) |
| Height | 39.3" (1000mm) |
Technical
Installation and Operation Manual
Harvia-WHP500 &1000 IOM.pdf1.03 MB
Required for Operation:
Price: $1,328.00
