Steamist TSG-24

Steamist TSG-24

Sale price$6,250.00
Voltage Phase:208V/3PH
Quantity:

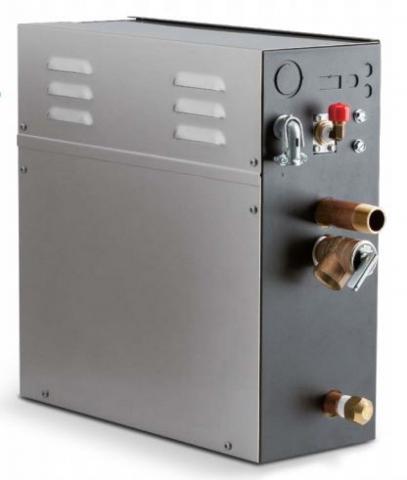

TotalSense Series 24kW Steam Shower Generator

Model: TSG-24

SKU: TSG-24-208-3

The Steamist TSG-24 is a 24kW home steam shower generator engineered for steam rooms with dimensions from 901 to 1100 adjusted cubic feet (ACF).

Required operating control sold separately.

Description

The Steamist TSG-24 is engineered for steam rooms with dimensions up to 1100 adjusted cubic feet (ACF).

The Steamist TSG-24 steam shower generator includes a stainless-steel tank, industrial-grade heating elements, durable electronic components, modular snap-in connection, color diagnostic displays, and a variety of other innovative features.

Steamist Total Sense Series TSG generators are equipped with SteadySteam technology which maintains the user's temperature preferences each steam session. The TSG-24 includes the innovative InstaMist feature which heats the steam shower enclosure quickly.

The high-effiency, low-maintenance TSG-24 steam room generator is engineered to provide years of dependable, worry-free operation. The steam unit's stainless-steel tank provides long-lasting strength and durability.

Steamist TSG generators are designed to save water and energy. The TSG-24 steamer uses less than one gallon of water during a typical twenty-minute bathing session, making it both eco-conscious and economical.

The compact TSG24 steam shower unit can be installed conveniently out of sight in closets, cabinets, insulated basements and attics.

The Steamist TSG-24 24kW steam generator is available in 208V, single-phase (TSG-24-208) three-phase configurations (TSG-24-208/3), and 240V single-phase (TSG-24) configurations.

Steamist TSG Series steam generators have the flexibility to be linked in tandem to accommodate larger steam rooms.

Steamist Total Sense Series generators operate one or more of Steamist's Total Sense Spa Options for an elevated home spa experience.

Steamist TSG generators are delivered factory assembled, carefully wired, and safety-tested to ensure quality.

The Steamist TSG-24 steam bath generator requires the use of a Steamist digital control or control package for operation. Select the available control with features that best suit your preferences.

We recommend the Steamist Auto Drain valve which automatically drains the system after each use. The Auto Drain Valve helps prevent harmful mineral buildup and calcification of the unit's heating elements and reservoir. For added convenience, the Auto Drain may be used with the available Steamist Generator Drain Pan.

The Steamist TSG-24 residential steam shower generator carries a limited lifetime warranty and is fully serviceable. Steamist generators are UL and CUL listed for your safety.

Features

  • For steam baths sized from 901 to 1100 adjusted cubic feet
  • Available in 240V and 208V operation
  • Stainless steel tank
  • SteadySteam technology with 3-stage, industrial grade heating element
  • Modular "snap-in" control connections
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Solid-state circuitry
  • Available Auto Drain automatic draining system
  • Selectable InstaMist technology standard
  • Optional tandem operation (up to 4 generators)
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Diagnostic LED Displays
  • Full port drain valve
  • ASME safety valve
  • UL 499
  • UL/CUL Listed
  • City of LA - Approved
  • City of New York - M.E.A. Approved

Includes

  • 24kW Steam bath generator
  • 6-pin, 6-wire control cable, 35' long with snap-in connectors
  • Installation and operation manual
  • Limited warranty

Specifications

Model TSG-24
Minimum Adjusted Cubic Feet 901
Maximum Adjusted Cubic Feet 1100
Shipping Weight (Lbs.) 60 lbs
Kilowatt Rating (KW) 24kW
Electrical Specifications Electrical Chart
Water Supply Connection 3/8” Compression Connection
Generator Steam Line Connection 3/4” NPT
Steam Head Connection 3/4” NPT
Drain Connection 1/2' NPT
Safety Relief Valve Connection 3/4' NPT
Safety Relief Valve PSIG 15 PSIG
Control 'Rough In' Cut Out 1-1/2” Diameter
Generator Control Connection 6-Pin, Snap-In Connector
Generator Control Cable 35’, 6-Conductor, 22 AWG, Shielded Cable
Width In Inches 19”
Depth In Inches 11.25”
Height In Inches 17”

Technical

Required for Operation:
