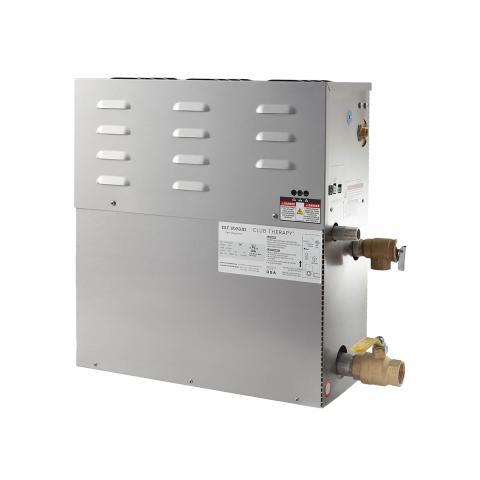

Mr.Steam CT Steam Generator 12
Commercial Steam Bath Generator, CT Spa Series, 12kW, Stainless Steel
Model: CT12E
SKU: CT12EC1
The Mr.Steam CT12E Commercial Steam Shower Generator is designed for day spa and hotel steam rooms with dimensions up to 411 adjusted cubic feet (ACF).
Description
The Mr.Steam CT12E Commercial Steam Shower Generator is constructed with a durable stainless-steel outer casing and equipped with the latest technology. It's perfect for any resort or day spa steam shower. The Express Steam features a built-in thermostat that maintains water temperature so your spa members can start steaming quickly.
The CT12E day spa generator is available in 240V and 208V single-phase (1PH) configurations.
With a water usage of 1.6 gallons during a 20-minute steam bath session, this day spa generator makes it both eco-conscious and economical.
The Mr.Steam CT day spa generators carry a limited lifetime warranty and are fully serviceable. All Mr.Steam commercial steam shower units are designed, engineered, and assembled in America.
Features
- Industrial grade and serviceable heating element
- Unitized stainless steel reservoir
- Durable electronic components
- Round mini-DIN control connections
- Electronic water-level system
- Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
- Low voltage safety control circuits
- Built-in 24V circuits
- ASME safety valve and full port drain valve
- UL/cUL listed
Includes
- CT Day Spa 12kW Generator
- Express Steam (Factory Installed)
- Installation and Operation Manual
- UL/cUL Listed and CE Approved
- Limited Warranty
Specifications
| Model | CT12EC1 |
|---|---|
| Kilowatt Rating | 12kW |
| Minimum Adjusted Cubic Feet | 258 |
| Maximum Adjusted Cubic Feet | 411 |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Length | 17" |
| Depth | 7 7/8" |
| Height | 18 1/2" |
| Shipping Weight | 40 lbs |
Technical
Installation and Operation Manual
Technical Data Sheet
Warranty
