ThermaSol Digital Shower Valve
Steam Shower, Digital Valve, 3 Output
Model: TDS-3000
SKU: TDS-3000
The Smart Digital Shower Valve allows precision control of water volume and exact temperatures. With a minimalist look desired by top architects, ThermaSol’s Digital Shower eliminates the need for exposed valves and trims. Designed to be concealed in walls the Digital Valve is technology you enjoy, but don't see.
Digital Shower Valve only
Description
The ThermaSol Smart Digital Shower Valve allows the ultimate in precision control of water volume and temperature.

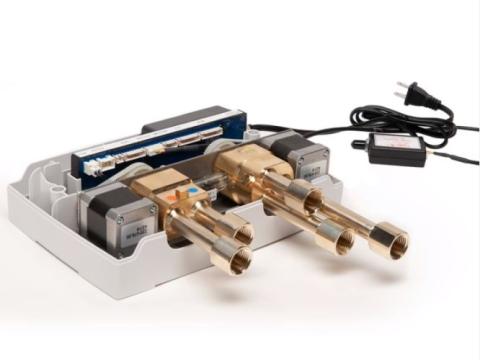

The advanced valve utilizes best in-class, ceramic disc Fluhs brass cartridges and two laboratory grade stepper motors - allowing 400 positions to deliver precise incremental settings.

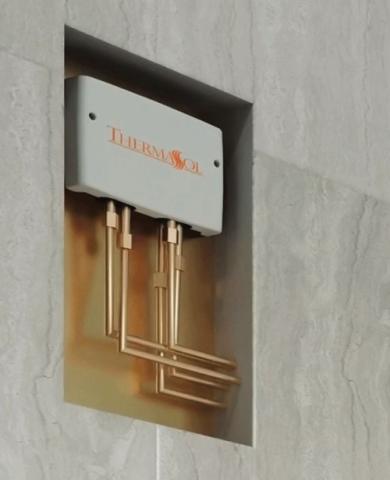

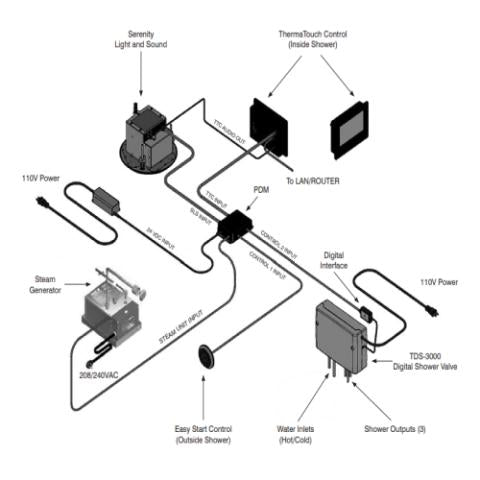

The ThermaSol Smart Digital Shower Valve allows installation flexibility up to 30 feet from the shower structure and has an integrated diverter so that the user can select different showering outlets.
Whether matched with ThermaSol’s quality shower products or other manufacturers, the Smart Digital Shower Valve is managed by one of ThermaSol’s intuitive smart touchscreen controls.
Features
- Precise temperature control
- Precise water volume control
- Eliminates exposed valves and trims
- Ceramic disc Fluhs
- 2 industrial grade stepper motors
- Solenoid valve systems
- Integrated diverter
- Three output valve
- IAPMO approved
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 11"W x 3"D x 7"H
- 5 year warranty
Includes

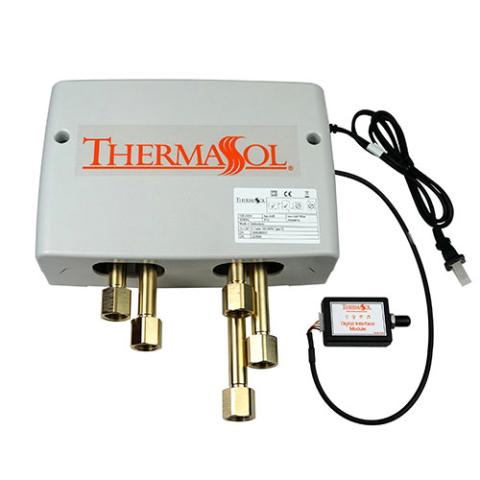

- Digital Shower Valve
- Screw set
- Connection nipple set
- CAN-bus cable 50ft'
- Digital interface
- Back up battery
- Installation manual
- Warranty
Specifications
| Model | Digital Shower Valve |
|---|---|
| 2 Inputs | 1/2" FNPT |
| 3 Outputs | 1/2" FNPT |
| Power Supply | |
| Input | 11VAC, 0.5 Amps |
| Output | 15VDC, 3 Amps required |
| Shipping Weight | 10.65 lbs |
| Width | 11" |
| Depth | 3" |
| Height | 7" |
Technical
Installation Manual
Spec Sheet
Digital Shower Valve Overview
