ThermaSol WHSP7S
ThermaTouch 7" Shower Control Pkg, Digital Shower Valve, HydroVive Light & Sound Rainhead
Model: WHSP7S
SKU: WHSP7S-WH-MB

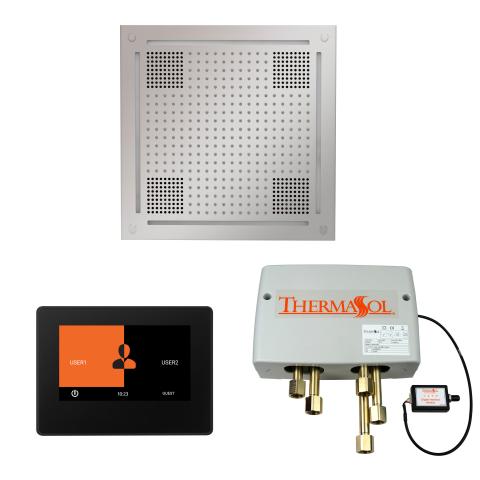

The package includes 7" ThermaTouch Control, Digital shower valve, and the HydroVive light & sound rainhead. This ThermaSol Shower Package contains the components for your best experience every time you shower.
Steam generator not included.
See Technical Tab for Finish Availability.
Description
Take yourself on a getaway every time you take a shower. This ThermaSol Shower Package contains the components for your best shower experience. The package includes 7" ThermaTouch Control, Digital shower valve, and the HydroVive light & sound rainhead.
The 7" LCD touchscreen control gives you the options of downloading apps for shows, music, and more. Android and Alexa compatible. The control is fully waterproof so you even more options of where you want the control installed. WiFi , built in bluetooth, and ethernet connection along with two customizable user settings. The control operates steam, digital shower, light sound, and water fixtures.
The light and sound rain system is a rainhead module that creates high intensity chromatherapy lights and sounds. It includes a color changing mood lighting with 200 full color luminous LED lights. Built in bluetooth v4.2 to make connecting your devices even easier.
The Digital Shower Valve adds to the elegance by eliminating the need for exposed valves and trims. The innovative ceramic disc valves ensures reliability and safety. Can be installed up to 30 feet away from your shower to work with all bathroom sizes. A battery backup is included.
Features
- Control fully waterproof
- Customizable user setting for two users
- Built-in Bluetooth and ethernet connection
- Android and Alexa compatible
- Control operates steam, digital shower, light sound, and water fixtures
- Color changing mood lighting
- Built - in Bluetooth v4.2
- Eliminates the need for exposed valves and trims
- Battery backup included
- May be installed up to 30 feet away from shower
- Output 9.25 GPM at 45 PSI
Includes
- 7" ThermaTouch Control
- Digital Shower Valve
- HydroVive light & sound rainhead
Specifications
Model | WHSP7S |
---|
Control | 7" ThermaTouch |
---|---|
Construction | Acrylic or 6061 Aluminum |
Audio Out | 1/8" Barrel Jack |
Display | 7" Wide LCD Touch Screen |
Shipping Weight | 1.8 lbs |
Width | 14" |
Depth | 11" |
Height | 8" |
Model | Digital Shower Valve |
---|---|
2 Inputs | 1/2" FNPT |
3 Outputs | 1/2" FNPT |
Power Supply | |
Input | 110VAC, 0.5 Amps |
Output | 15VDC, 3 Amps required |
Shipping Weight | 10.65 lbs |
Width | 16" |
Depth | 12" |
Height | 3.5" |
Model | HydroVive light and sound rainhead |
---|---|
Construction Material | Machined Brass |
Function Lights | 200 Full-color luminous LED |
Water Supply | 3/8”, 40-80 PSI, 1.8GPM |
Water Jets | 300 |
CEC Approved | Yes |
Amplifier | 100Watt RMS |
Digital Signal Processor | Built-In |
Weight | 37 lbs |
Width | 18" |
Depth | 8" |
Height | 18" |
Technical
Installation Manual
Control Overview
Rainhead Overview
Digital Shower Valve Overview
Specification Sheet
Finish Availability
