Amerec AK30

Amerec AK30

Sale price$8,300.00
Voltage Phase:208V
Quantity:

AK Series 30kW Steam Shower Generator

Model: AK30

SKU: 9014-227

The Amerec AK30 is a 30kW home steam shower generator designed for large residential or commercial steam rooms with dimensions up to 1300 adjusted cubic feet (ACF). The AK30 is made up of trio generators in tandem (one 9kw and two 11kw generators).

Required control package sold separately.

Description

The Amerec AK30 is designed for large home and commercial steam rooms with dimensions up to 1300 adjusted cubic feet (ACF).

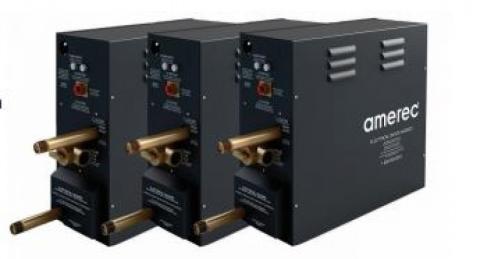

The AK30 is made up of trio generators in tandem (one 9kw and two 11kw generators). Each generator features a stainless-steel tank, professional-grade heating elements, durable electronic components, ASME safety valve, electronic water-level control system, and an assortment of other features.

The Amerec AK30 steam shower generator provides bathers with the most pleasurable and consistent steam bathing experiences. The AK30 steam unit uses a Sequential Temperature Control which ensures an even flow of soft steam.

Homes, health clubs, and day spas rely on Amerec AK Series generators to deliver years of reliable, clean, and efficient operation. Crafted of corrosion-resistant stainless-steel, the Amerec AK30 provides long-lasting strength and durability. The unit features removable heating elements for easy and economical service.

The compact AK30 generator installs conveniently out of sight in closets, vanities, cabinets, and other similar locations.

The Amerec AK30 30kW steam generator is available in 240V or 208V and can be field wired for single-phase or three-phase configurations.

The Amerec AK30 steam bath generator requires the available K3 control control for operation which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package comes with a matching finish ComfortFlo steam head.

Amerec AK Series residential steam room generators can be linked in tandem to accommodate steam shower enclosures larger than 1300 adjusted cubic feet. Connection cables are sold separately, and each generator requires a ComfortFlo steam head.

We recommend Amerec’s Automatic Drain System for each steam generator with your AK30 steam shower unit which drains the generator tank after each use to help prevent calcification and lime build-up.

The Amerec AK30 steam bath generator carries a limited lifetime warranty and is fully serviceable. Amerec AK Series residential steam shower generators are UL, CSA, and CE listed to ensure your safety.

Features

  • Sequential temperature control for consistent flow
  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Ability to field wire in 1-phase or 3-phase
  • Ability to connect multiple generators to heat steam baths larger than 1300 cubic feet
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Full 3/4" port drain valve
  • ASME safety valve
  • UL/CSA/CE listed

Includes

  • 30kW steam bath generator; one 9KW and two 11KW steam generators
  • Two Gang cables
  • Note: Does not include two additional steam heads. First steam head comes with Control package.
  • Installation and operation manual
  • Limited warranty

Specifications

Model AK30
Minimum Adjusted Cubic Feet 1000
Maximum Adjusted Cubic Feet 1300
Kilowatt Rating (KW) 31KW
Shipping Weight (Lbs.) 110 lbs
AC Voltage 240V AC
DC Voltage 5V DC
Phase Single Phase
Water Supply Connection (3) 3/8" NPT
Generator Steam Line Connection (3) 1/2" NPT
Steam Head Connection (3) 1/2" NPT
Drain Connection (3) 3/4" NPT
Safety Relief Valve Connection (3) 3/4" NPT
Safety Relief Valve PSIG (3) 10 PSIG
Control "Rough In" Cut Out 2-3/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Width In Inches (3) 16-1/2"
Depth In Inches (3) 6-1/4"
Height In Inches (3) 15"
