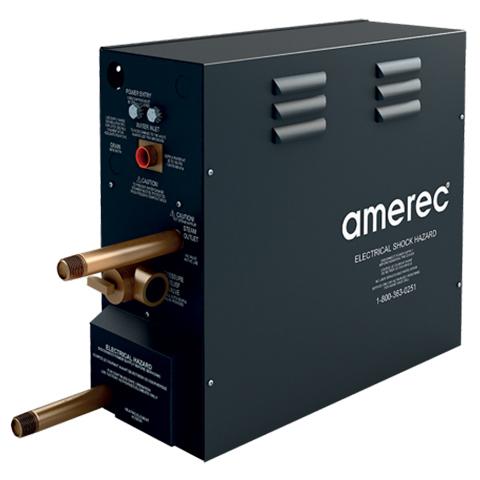

Amerec AK9
AK Series 9kW Steam Shower Generator
Model: AK9
SKU: 9014-127
The Amerec AK9 is a 9kW home steam shower generator is engineered for residential and day spa steam baths with dimensions up to 300 adjusted cubic feet (ACF).
Required control package sold separately.
Description
The Amerec AK9 is engineered for home and day spa steam baths with dimensions up to 300 adjusted cubic feet (ACF).
The Amerec AK9 steam unit is equipped with a stainless-steel tank, professional-grade heating elements, electronic water-level control system, modular snap-in control connections, and a variety of other innovative features.
Amerec AK Series steam generators are engineered to power the most demanding home and commercial steam room environments. The high-efficiency Amerec AK9 steam shower generator is crafted of corrosion-resistant stainless-steel for years of safe, reliable operation.
The Amerec AK9 is designed to provide bathers with the most pleasurable and comfortable steam bathing experiences. The unit features a uses a Sequential Temperature Control which delivers an even flow of soft steam each bathing session. The AK9 steamer’s heating elements are engineered for easy and economical service.
The compact AK9 steam shower unit installs conveniently out of sight. Typical installation locations include cabinets, closets, and vanities.
The Amerec AK9 9kW steam generator is available in 240V or 208V and can be field wired for single-phase or three-phase configurations. Homeowners, health clubs, and day spas rely on Amerec AK Series generators for low cost, efficiency, and durability. Amerec AK generators are engineered to deliver energy-efficient steam production each bathing session.
Amerec AK series residential steam room generators can be linked in tandem to accommodate steam showers up to 1500 adjusted cubic feet. Connection cables are sold separately, and each generator requires a comfortFlo steam head.
The Amerec AK9 steam bath generator carries a limited lifetime warranty and is fully serviceable. Amerec AK Series home steam room generators are UL, CSA, and CE listed to ensure your safety.
Features
- Sequential temperature control for soft steam
- Stainless steel tank
- Industrial grade, serviceable heating elements
- Durable electronic components
- Electronic water-level control system
- Low voltage safety control circuits
- Available Auto Drain automatic draining system
- Ability to field wire phase for 1-phase or 3-phase
- Ability to connect multiple generators to heat steam baths larger than 550 cubic feet
- Full 3/4" port drain valve
- ASME safety valve
- UL/CSA/CE listed
Includes
- 9kW steam bath generator
- Installation and operation manual
- Limited warranty
Specifications
| Model | AK9 |
|---|---|
| Minimum Adjusted Cubic Feet | 150 |
| Maximum Adjusted Cubic Feet | 300 |
| Shipping Weight (Lbs.) | 35 lbs |
| Kilowatt Rating (KW) | 9 KW |
| Water Supply Connection | 3/8" Compression Connection |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 3/4" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 10 PSIG |
| Control "Rough In" Cut Out | 2-3/8" Diameter |
| Generator Control Connection | 8 Pin, Snap-In Connector |
| Generator Control Cable | 25', 8 Conductor, 28 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
| Width In Inches | 16-1/2" |
| Depth In Inches | 6-1/4" |
| Height In Inches | 15" |
