HUUM HIVE 15STUX Pkg
HIVE Series 15.0kW Sauna Heater Package
Model: HIVE 15STUX Pkg

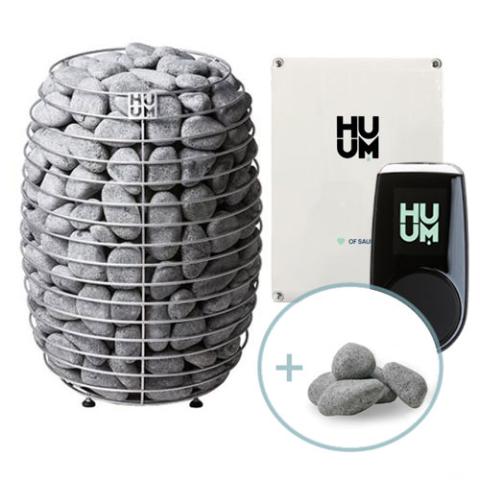

The HUUM HIVE series 15STUX Pkg 15.0kW sauna heater package, complete with UKU control, UKU Extension box, and sauna stones gives your sauna unmatched performance and elegance. It is engineered for large sauna rooms up to 1050 cubic feet (CF).
See Shipping Tab
Description
The HUUM HIVE series 15STUX Pkg 15.0kW sauna heater package features all the necessities to give your sauna space a touch of elegance. This all-inclusive package features UKU control, UKU Extension box, and sauna stones for a long-lasting steam engineered for spaces up to 1050 cubic feet (CF).
Precision-engineered and crafted in Estonia for a true European sauna experience.
See Shipping Tab
Features

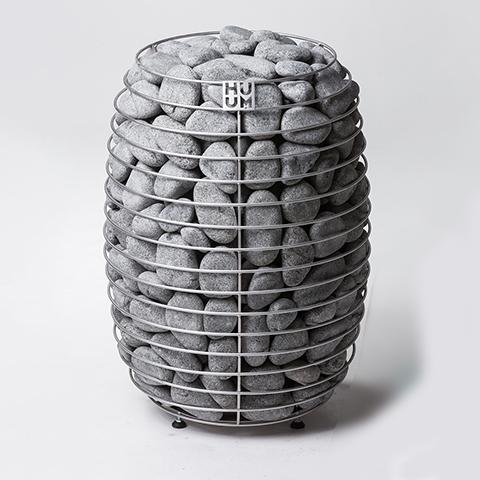

Hive Series 15.0kW Sauna Heater
- Elegant design
- Suitable for commercial use
- 240V/1PH operation
- For sauna rooms from 530 to 1060 cu. ft.
- Works with UKU controls
- Works with UKU extension box
- Large 552-pound stone capacity or 463lbs with use of HIVE air tunnel
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 22" Diameter (560mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)

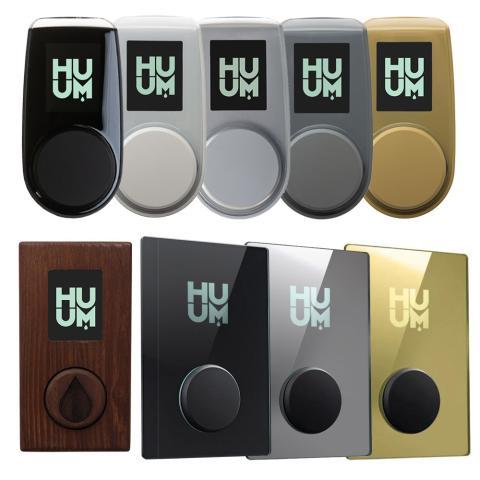

UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance

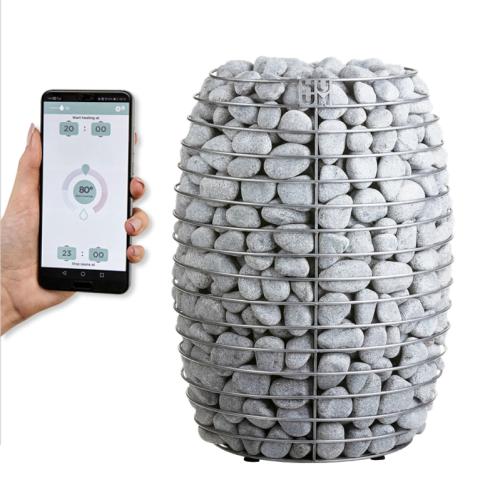

- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
HIVE Series 15.0kW Sauna Heater
- 15.0kW Sauna heater
- Adjustable legs
- Installation and operation manual
- Limited 5-year warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty

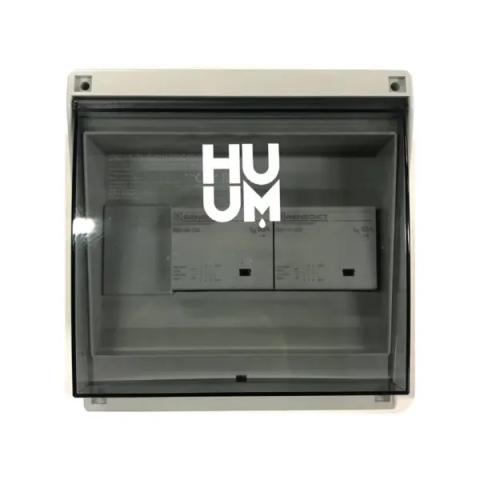

Extension Box
- For use with UKU controls
- For heaters over 11kW
- Dimensions: 7"W (178mm) x 6"D (152mm)7"H (178mm)
Stones 24
- 552 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Specifications
Model | HIVE 15STUX Pkg |
---|
Model | HIVE 15 |
---|---|
Kilowatt Rating | 15KW |
Minimum Cubic Feet | 530 CF |
Maximum Cubic Feet | 1060 CF |
Heater Weight | 46.3 lbs |
Shipping Weight with Sauna Stones | 607.3 lbs |
240V, Single Phase Amperage | 62.5 Amps |
Circuit Breaker | 50 + 50 |
Wire Size AWG | 8 + 8 |
Diameter | 22" (560mm) |
Height | 29.5" (750mm) |
UKU | |
---|---|
Minimum Temperature Setting | 104 F |
Maximum Temperature Setting | 230 F |
Shipping Weight | 20 lbs |
Console Dimensions | |
Width | 2.2" (55mm) |
Depth | 0.9" (22mm) |
Height | 4.1" (105mm) |
Main Module Dimensions | |
Width | 3.5" (90mm) |
Depth | 2.3" (58mm) |
Height | 5.6" (142mm) |
Display Panel Cable | |
Length | 9.8 ft |
AWG | 22 |
Temp Sensor Cable | |
Length | 16.4 ft |
AWG | 24 |
Door Sensor Cable | |
Length | 16.4 ft |
AWG | 24 |
