HUUM HIVE 18STUX Pkg
HIVE Series 18.0kW Sauna Heater Package
Model: HIVE 18STUX Pkg

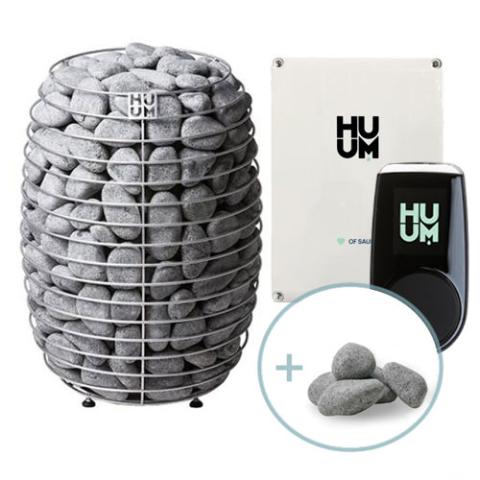

The HUUM HIVE series 18STUX Pkg 18.0kW sauna heater package, complete with UKU control, UKU Extension box, and sauna stones, is engineered for sauna rooms up to 1230 cubic feet (CF).
See Shipping Tab
Description
The HUUM HIVE series 18STUX Pkg 18.0kW sauna heater package features all the necessities to give your sauna space a touch of elegance. This all-inclusive package features UKU control, UKU Extension box, and sauna stones for a long-lasting steam engineered for spaces up to 1230 cubic feet (CF).
Precision-engineered and crafted in Estonia for a true European sauna experience.
See Shipping Tab
Features

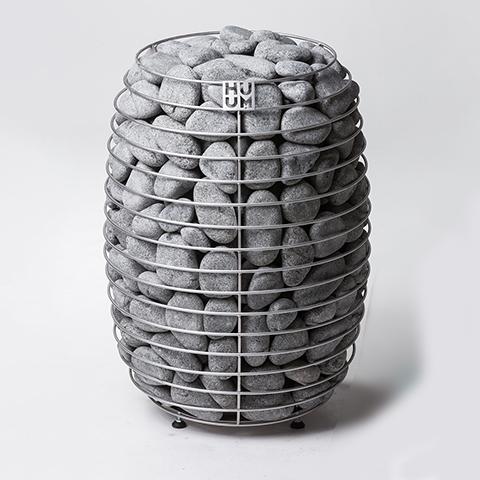

Hive Series 18.0kW Sauna Heater
- Elegant design
- Suitable for commercial use
- 240V/1PH operation
- For sauna rooms from 636 to 1236 cu. ft.
- Works with UKU controls (sold separately)
- Works with UKU extension box (sold separately)
- Large 552-pound stone capacity (sold separately, Requires 17 boxes) or 463lbs with use of HIVE air tunnel
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 22" Diameter (560mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)

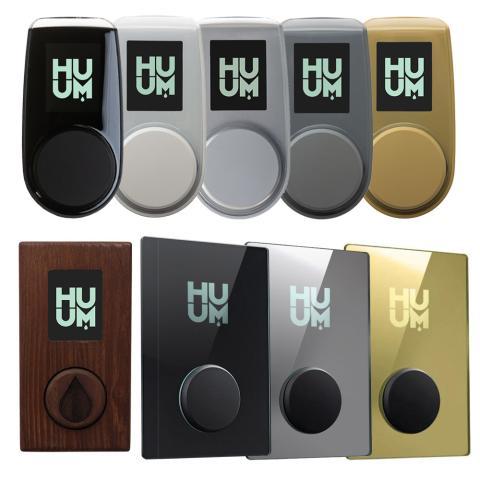

UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance

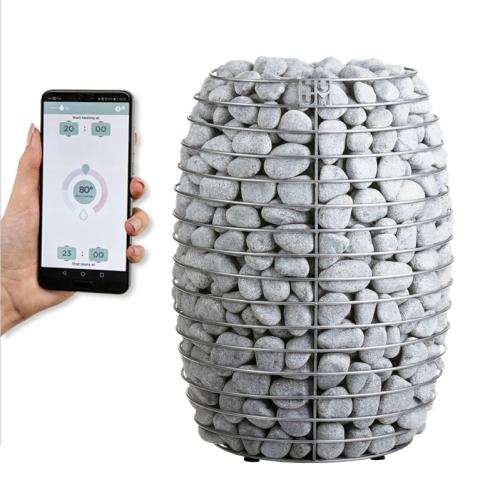

- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
Hive Series 18.0kW Sauna Heater
- 18.0kW Sauna heater
- Adjustable legs
- Installation and operation manual
- Limited 5-year warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty

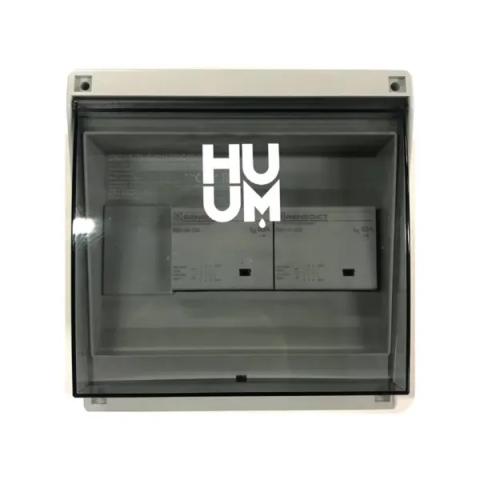

Extension Box
- For use with UKU controls
- For heaters over 11kW
- Dimensions: 7"W (178mm) x 6"D (152mm)7"H (178mm)
Stones 24
- 552 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Specifications
Model | HIVE 18STUX Pkg |
---|
Model | HIVE 18 |
---|---|
Kilowatt Rating | 18KW |
Minimum Cubic Feet | 636 CF |
Maximum Cubic Feet | 1236 CF |
Heater Weight | 48.5 lbs |
Shipping Weight with Sauna Stones | 600.5 lbs |
240V, Single Phase Amperage | 75 Amps |
Circuit Breaker | 50 + 50 |
Wire Size AWG | 8 + 8 |
Diameter | 22" (560mm) |
Height | 29.5" (750mm) |
UKU | |
---|---|
Minimum Temperature Setting | 104 F |
Maximum Temperature Setting | 230 F |
Shipping Weight | 20 lbs |
Console Dimensions | |
Width | 2.2" (55mm) |
Depth | 0.9" (22mm) |
Height | 4.1" (105mm) |
Main Module Dimensions | |
Width | 3.5" (90mm) |
Depth | 2.3" (58mm) |
Height | 5.6" (142mm) |
Display Panel Cable | |
Length | 9.8 ft |
AWG | 22 |
Temp Sensor Cable | |
Length | 16.4 ft |
AWG | 24 |
Door Sensor Cable | |
Length | 16.4 ft |
AWG | 24 |
