HUUM Hive Mini 6STU Pkg
Hive Mini Series 6.0kW Sauna Heater Package
Model: Hive Mini 6STU Pkg

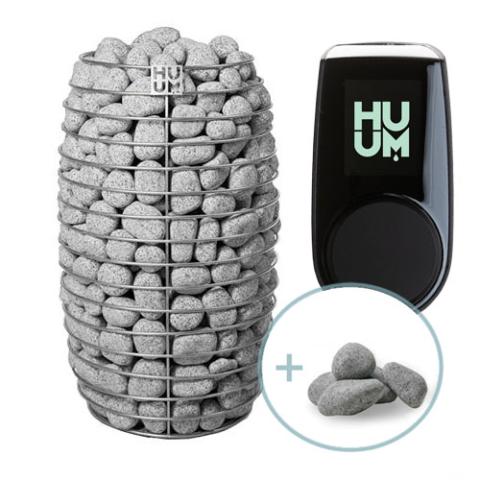

The HUUM Hive Mini series 6STU Pkg 6.0kW sauna heater package, complete with UKU control and sauna stones, is engineered for sauna rooms up to 282 cubic feet (CF).
SEE SHIPPING TAB
Description
The HUUM Hive Mini 6STU PKG features all the necessities to give your sauna space a touch of tradition. This all-inclusive package features a sauna control package complete with optional Wi-Fi,330lbs of olivine stones for a long-lasting steam and a 6.0kW sauna heater engineered for spaces up to 282 cubic feet (CF).
Features

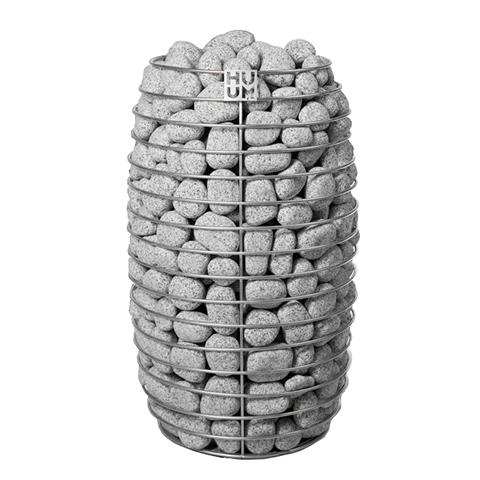

Hive Mini 6.0kW Sauna Heater
- Elegant design
- 240V/1PH operation
- For sauna rooms from 176 to 282 cu. ft.
- Works with UKU controls (sold separately)
- 330 pound stone capacity (265lbs with user of HIVE air tunnel -sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel

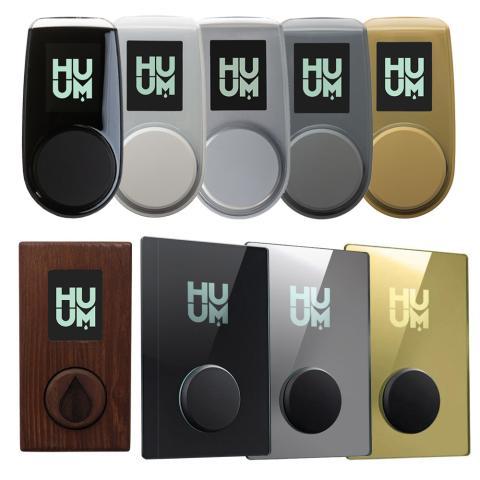

- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
HIVE Mini 6kW Sauna Heater
- Elegant design
- 240V/1PH operation
- For sauna rooms from 176 to 282 cu. ft.
- Works with UKU controls (sold separately)
- 330 pound stone capacity (265lbs with user of HIVE air tunnel -sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 24
- 330 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Specifications
| Model | HIVE Mini 6STU Pkg |
|---|
| Model | Hive Mini 6 |
|---|---|
| Kilowatt Rating | 6.0 KW |
| Minimum Cubic Feet | 176 CF |
| Maximum Cubic Feet | 282 CF |
| Heater Weight | 31 lbs |
| Shipping Weight with Sauna Stones | 361 lbs |
| 240V, Single Phase Amperage | 25 Amps |
| Circuit Breaker | 30 |
| Wire Size AWG | 10 |
| Diameter | 18.1" (460mm) |
| Height | 29.5" (750mm) |
| UKU | |
|---|---|
| Minimum Temperature Setting | 104 F |
| Maximum Temperature Setting | 230 F |
| Shipping Weight | 20 lbs |
| Console Dimensions | |
| Width | 2.2" (55mm) |
| Depth | 0.9" (22mm) |
| Height | 4.1" (105mm) |
| Main Module Dimensions | |
| Width | 3.5" (90mm) |
| Depth | 2.3" (58mm) |
| Height | 5.6" (142mm) |
| Display Panel Cable | |
| Length | 9.8 ft |
| AWG | 22 |
| Temp Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
| Door Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
