HUUM Hive Mini 9STU Pkg
HUUM Hive Mini 9STU Pkg
HUUM Hive Mini 9STU Pkg
HUUM Hive Mini 9STU Pkg
HUUM Hive Mini 9STU Pkg
HUUM Hive Mini 9STU Pkg

HUUM Hive Mini 9STU Pkg

Sale price$3,143.00
Heater Control Package:UKU Local Black
Quantity:

Hive Mini Series 9.0kW Sauna Heater Package

Model: Hive Mini 9STU Pkg

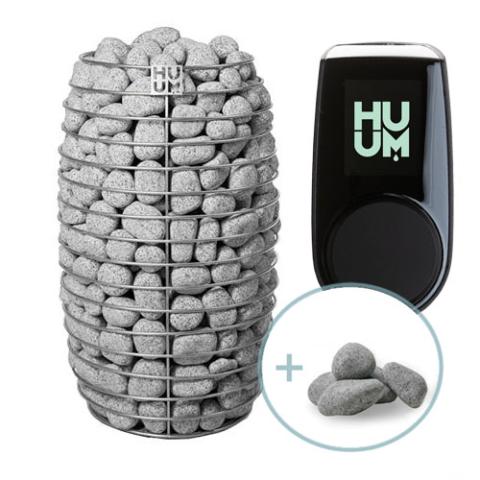

The HUUM Hive Mini series DROP 9STU Pkg 9kW sauna heater package, complete with UKU control and sauna stones, is engineered for sauna rooms up to 530 cubic feet (CF).

See Shipping Tab

Description

The HUUM Hive Mini 9STU PKG features all the necessities to give your sauna space a touch of tradition. This all-inclusive package features a sauna control package complete with optional Wi-Fi,330lbs of olivine stones for a long-lasting steam and a 9.0kW sauna heater engineered for spaces up to 530 cubic feet (CF).

Features

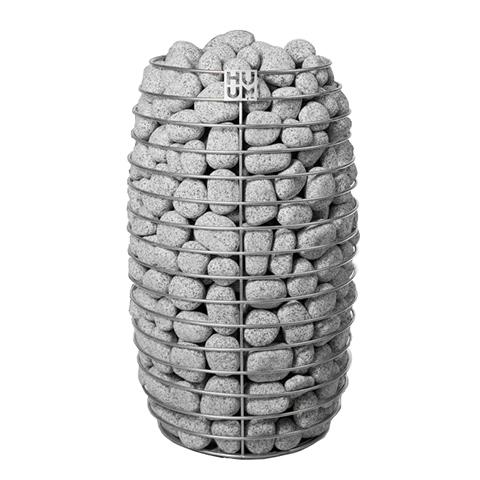

Hive Mini 9.0kW Sauna Heater

  • Elegant design
  • 240V/1PH operation
  • For sauna rooms from 317 to 530 cu. ft.
  • Works with UKU controls (sold separately)
  • 330 pound stone capacity (265lbs with use of HIVE air tunnel -sold separately)
  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements​
  • Floor model with adjustable legs
  • Designed, engineered, and made in Estonia
  • Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
  • SGS Listed
  • Limited 5-year warranty (excluding elements)

UKU Local

  • Sleek Black control display panel

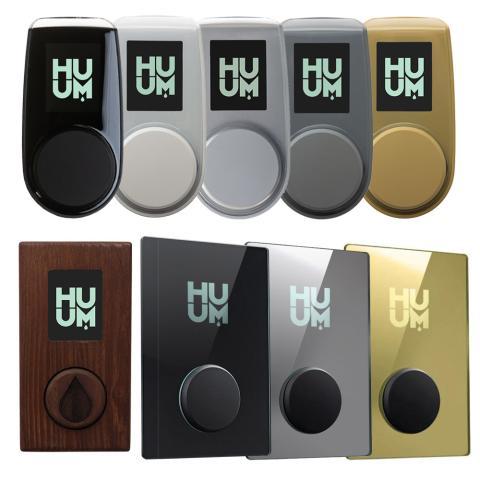

  • Multiple Color Options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230F
  • Delayed start up to 48hrs in advance
  • Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

Stones 24

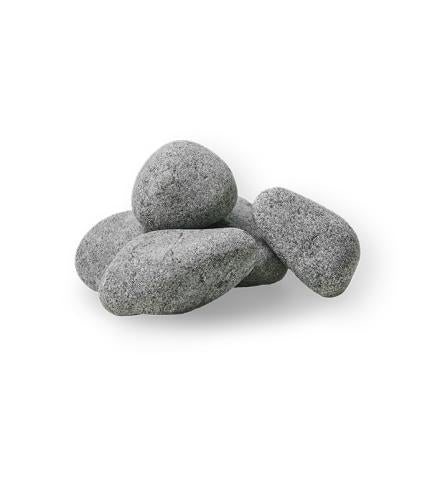

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 2" to 4" (5-10 cm)

Includes

HIVE Mini 9kW Sauna Heater

  • 9.0kW Sauna heater
  • Adjustable legs
  • Installation and Operation manual
  • 5-Year limited warranty (excluding elements)

UKU

  • Black Control console
  • Main control module
  • Temperature sensor
  • Door sensor
  • Control display panel cable
  • Temperature sensor cable
  • Door sensor cable
  • Installation and operation manual
  • 5-Year limited warranty

Stones 24

  • 330 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones

Specifications

Model HIVE Mini 9.0STU Pkg
Model Hive Mini 9
Kilowatt Rating 9.0 KW
Minimum Cubic Feet 317 CF
Maximum Cubic Feet 530 CF
Heater Weight 36 lbs
Shipping Weight with Sauna Stones 366 lbs
240V, Single Phase Amperage 37.5 Amps
Circuit Breaker 50
Wire Size AWG 8
Diameter 18.1" (460mm)
Height 29.5" (750mm)
UKU
Minimum Temperature Setting 104 F
Maximum Temperature Setting 230 F
Shipping Weight 20 lbs
Console Dimensions
Width 2.2" (55mm)
Depth 0.9" (22mm)
Height 4.1" (105mm)
Main Module Dimensions
Width 3.5" (90mm)
Depth 2.3" (58mm)
Height 5.6" (142mm)
Display Panel Cable
Length 9.8 ft
AWG 22
Temp Sensor Cable
Length 16.4 ft
AWG 24
Door Sensor Cable
Length 16.4 ft
AWG 24

Shipping

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project's success.
