Amerec ADI
Available Features:Analog Clock
Quantity:
Automatic Drain System, AI Series
Model: ADI
SKU: 9210-118
Optional on all AI boilers, this electrically operated drain valve allows for automatic routine boiler draining.
Description
The Amerec ADI automatic drain is the first step in creating an effective preventative maintenance program. Optional on all AI boilers, this electrically operated drain valve allows for automatic routine boiler draining. As water is changed to steam, solids are left behind eventually interfering with the water-level sensing controls and heating elements. One Amerec ADI automatic drain system per boiler.
Features
- Automatically drains water
- Effective preventative maintenance program

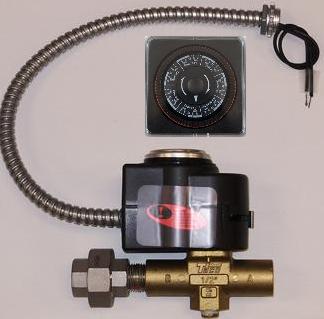

Includes
- Motorized drain valve, 120V AC, 3/4” NTP
- Analog time clock I24/1
- Installation and operation manual
Specifications
| Model | ADI |
|---|---|
| Shipping Weight | 7 lbs |
| AC Voltage | 120V AC |
| DC Voltage | 120V AC |
| Phase | Single Phase |
| Nominal Amperage | Less Than 1 Amp |
Technical
Installation and Operation Manual
COOLFLUSH IOM.pdf150.16 KB
