Bathology Atmospheric 320
Exhaust Fan Style:Wall Exhaust

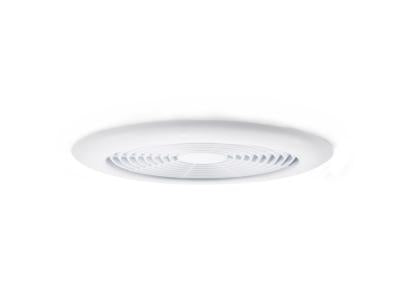

Grille Style:Ceiling Grille (No Light)
Secondary Grille Style:Ceiling Grille (No Light)
Quantity:
Dual Vent Bath Fan w/ Optional Lighting, 230CFM
Model: Atmospheric 320

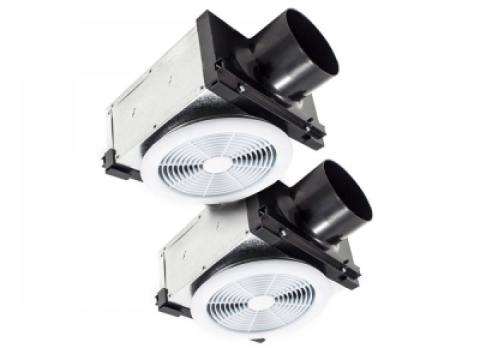

Requires two ceiling grilles with housings and wall or roof vent. Consider the Atmospheric 310 for single grille applications.
This product is not designed for In-Shower applications. For Steam or In-Shower use please see the Atmospheric 410
Description
Requires two ceiling grilles with housings and wall or roof vent. Consider the Atmospheric-310 for single grille applications.
Features
- Super quiet performance
- High CFM/Watt efficiency
- Superior performance @ Higher Static
- Small 7” grille diameter

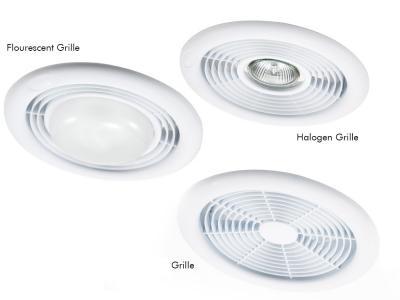

- Optional Dimmable 50W Halogen Lighting
- Optional LED Lighting
- May qualify for local utility rebate
- Simplified installation
- Inline backdraft dampers
- Remote placement of fan motor
- Flex duct installation
- EBM motor assembly
- Variable speed control
- Uses 4” and 6” duct
- C-UL US listed
- UL listed for Wet Locations
- IC rated
Includes
- Remote fan, 230 CFM with mounting bracket
- Electronic Timer Control
- Slide Speed Control
- Flex Duct, 6"x25'
- Y-adapter, 4"x4"x6"
- (2) Flex Ducts, 4"x25'
- (2) Dampers, 4"
- (2) Mastic, 11oz tube
- (6) Sheet Metal screws
- (4) Duct Straps, 18"
- (12) Duct Straps, 3"
- Manufacturer’s warranty
- Installation manual
Specifications
| Model | Atmospheric 320 |
|---|
| Fan | |
|---|---|
| Type | In-Line |
| Dimensions | 11-3/4" Diameter x 9-1/2" Length |
| Housing Composition | ABS - PC Blend Thermo Plastic |
| Air Volume | CFM: 230 @ .20" W.G. |
| AC Voltage | Operating Voltage 120VAC |
| Power Consumption | 71W |
| Nominal Amperage | .58 Amps |
| Lubrication | Permanently Lubricated, Sealed Ball Bearings |
| Protection | Thermal Overload, Automatic Reset |
| Speed Control | 100% Speed Controllable |
| Testing | U.L. Listed; CSA Certified |
| Airstream Tolerance | Up To 140° F |
| Damper | |
|---|---|
| Dimensions | 6" Diameter x 6" Length |
| Body Composition | Galvanized Steel, 28 Gauge |
| Blade Composition | Aluminum Blades |
| Seal Composition | Foam |
| Roof Cap (option) | |
|---|---|
| Type | Removable Screen, Duct Extension |
| Cap Dimensions | 10-3/4"L x 8-1/4"W x 5-1/4"H |
| Composition | Galvanized Steel, 28 Gauge |
| "Rough-In" Cut-Out | 6-1/8" |
| Duct Connection | 6" |

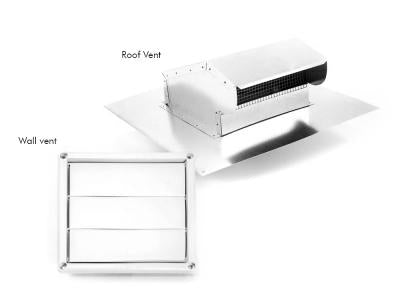

| Wall Vent (Option) | |
|---|---|
| Type | Duct Extension |
| Vent Dimensions | 8-1/8"L x 8-1/8"W x 7/16"H |
| Duct Extensions | 6" Diameter x 12' Length |
| Grille Composition | Polyethylene Plastic, UV Resistant, Brittleness Temperature of -99° F |
| Extension Composition | Galvanized Steel, 28 Gauge |
| "Rough-In" Cut-Out | 6-1/8" |
| Duct Connection | 6" |
| Flex Duct | |
|---|---|
| Diemensions | 6" Diameter x 25' Length |
| Composition | Reinforced Grey Polyester, Fiberglass Insulation |
| Testing | UL-181 |
| R-Value | 4.2 |
| Operating Temperatures | Max -20° F To 140° F |
| Duct Tie | |
|---|---|
| Composition | Nylon |
| Operating Temperatures | Max 185° F |
| Tensile Strength | 175 lbs |
| Testing | UL-181-B-C |
| Mastic | |
|---|---|
| Composition | Liquid Sealant, Water-Based, UV Resistant, Grey |
| Use | Indoor / Outdoor |
| Testing | UL-181-B, USDA, FDA, EPA Approved |
| Control | |
|---|---|
| Type | Electronic Timer |
| Operating Voltage | 120VAC, 60Hz |
| Amperage Rating | 20 Amps |
| Motorload | 1HP |
| Control (Option) | |
|---|---|
| Type | Slide Speed |
| Operating Voltage | 120VAC, 60Hz |
| Amperage Rating | 5 Amps |
Technical
Installation Manual
Atmospheric 320 - 230CFM.pdf1.32 MB
