Harvia Cilindro PC80E
Cilindro Half Series 8kW Sauna Heater
Model: Cilindro PC80E
SKU: HPCS8U1H

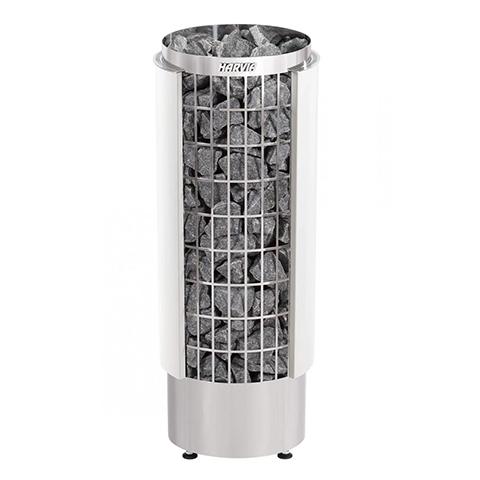

Harvia Cilindro PC80E, a modern stainless steel pillar-style sauna heater, is engineered to power sauna rooms up to 431 cubic feet (CF).
Requires Xenio control and a minimum of 200lbs of stones, sold separately.
See Shipping Information Tab
Description

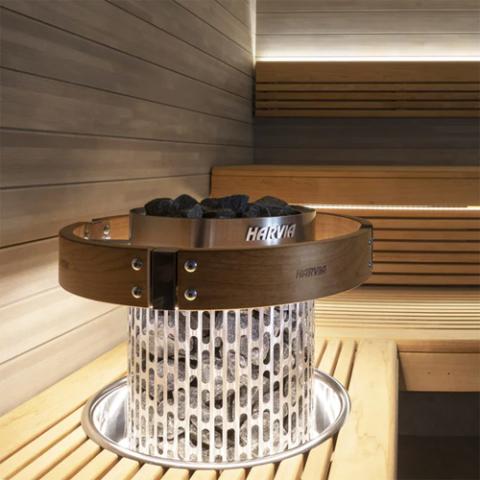

Harvia Cilindro PC80E, a modern steel pillar style sauna heater available in both 240V single phase or 208V 3 phase, is engineered to power sauna rooms up to 431 cubic feet (CF). The Harvia Cilindro electric heater contains a massive amount of stones. Thanks to the grate-like outer shell, each bather can adjust the nature of the steam: soft when throwing water onto the side of the heater and sharp when throwing water straight on top of the stone pillar. Cilindro is impressive to both look at and experience.
The Harvia Harvia Cilindro PC80E sauna heating unit required Xenio control for operation is sold separately.
Features
- Side-wall or corner of room install
- Stainless Stee construction
- 8kW
- For sauna rooms from 141 to 431 cu. ft.
- Requires a minimum of 200lbs of stones (5 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Stainless Steel elements
- Direct rock-to-heating element contact
- Industrial grade, serviceable heating elements
- Designed, engineered, and made in Finland
- Dimensions: 14"W (355mm) x 13"D (330mm) x 40"H (1016mm)
- 2-Year Warranty (Consumer Use)
Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Includes
- Sauna heater
- Installation and operation manual
- 2-Year Warranty (Consumer Use)
Specifications
Model | Cilindro PC80E |
---|---|
Kilowatt Rating (kW) | 8 kW |
Primary Fuel | Electric |
Minimum Adjusted Cubic Feet | 141 |
Maximum Adjusted Cubic Feet | 431 |
Voltage | 240 |
Phase | 1 |
Nominal Amps | 33.4 Amps |
Heater Weight | 37.5 lbs |
Shipping Weight with Sauna Stones | 257.5 lbs |
Width In Inches | 14" (355mm) |
Depth In Inches | 13" (330mm) |
Height In Inches | 40" (1016mm) |
Shipping
The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project's success.
Technical
Installation and Operation Manual
Data Sheet
Stone Requirement
Harvia Suitable Sauna Stones Update 6/22
Harvia Heater Elements
Size your Sauna
Warranty
