HUUM CLIFF 10.5STU Pkg
HUUM CLIFF 10.5STU Pkg
HUUM CLIFF 10.5STU Pkg
HUUM CLIFF 10.5STU Pkg

HUUM CLIFF 10.5STU Pkg

Sale price$3,351.00
Heater Control Package:UKU Local Black
Quantity:

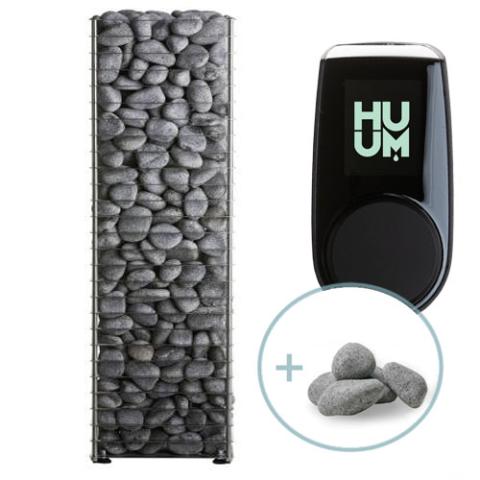

CLIFF Series 10.5kW Sauna Heater Package

Model: CLIFF 10.5STU

This HUUM Cliff sauna heater package comes complete with the traditionally designed CLIFF 10.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 600 cubic feet (CF)

Description

This HUUM Cliff sauna heater package comes complete with the traditionally designed CLIFF 10.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 600 cubic feet (CF)

Features

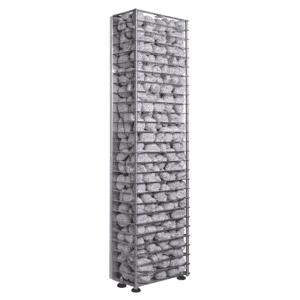

CLIFF 10.5kW Sauna Heater

  • Slim design
  • Suitable for use in saunas with limited space
  • Small safety distances
  • Heats up to 25% faster due to internal air duct
  • For sauna rooms from 353 to 600 cu. ft.
  • Works with UKU controls (sold separately)
  • Works with UKU extension box (sold separately)
  • 165 pound stone capacity (required 5 boxes sold separately)
  • Removable rib(s) for more accurate stacking of stones
  • Direct contact between stones and heating elements
  • More exposed stones creates a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements​
  • Floor model
  • Designed, engineered, and made in Estonia
  • Dimensions: 10.6" W (270mm) x 10.6" W (270mm) x 38.4" H (975mm)
  • Limited 5-year warranty (excluding elements)

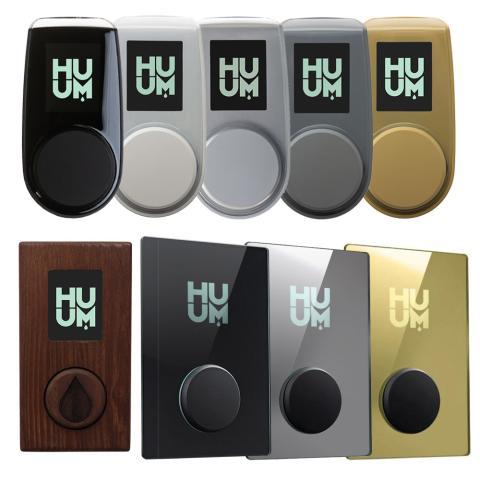

UKU

  • Sleek Black control display panel
  • Multiple Color Options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230F
  • Delayed start up to 48hrs in advance
  • Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

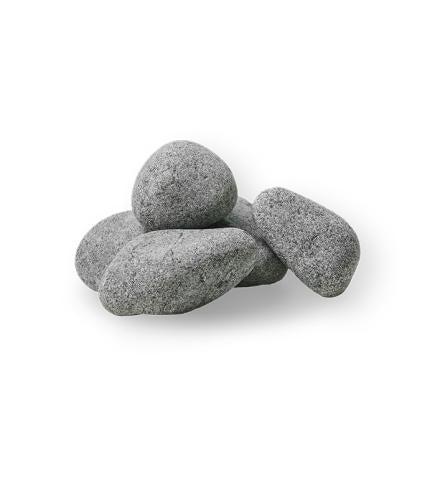

Stones 12

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 1" to 2" (3-5 cm)

Includes

CLIFF 10.5kW Sauna Heater

  • 10.5kW sauna heater
  • 2 prop blocks (for removal of sauna rib slats)
  • Installation and operation manual
  • 5-Year limited warranty (excluding elements)

UKU

  • Black Control console
  • Main control module
  • Temperature sensor
  • Door sensor
  • Control display panel cable
  • Temperature sensor cable
  • Door sensor cable
  • Installation and operation manual
  • 5-Year limited warranty

Stones 12

  • 165 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones

Specifications

Model CLIFF 10.5STU Pkg
CLIFF 10.5
Kilowatt Rating 10.5 KW
Minimum Cubic Feet 353 CF
Maximum Cubic Feet 600 CF
Heater Weight 37.5 lbs
Shipping Weight with Sauna Stones 202.5 lbs
240V, Single Phase Amperage --
Width 10.6" W (270mm)
Depth 10.6" W (270mm)
Height 38.4" H (975mm)
UKU
Minimum Temperature Setting 104 F
Maximum Temperature Setting 230 F
Shipping Weight 20 lbs
Console Dimensions
Width 2.2" (55mm)
Depth 0.9" (22mm)
Height 4.1" (105mm)
Main Module Dimensions
Width 3.5" (90mm)
Depth 2.3" (58mm)
Height 5.6" (142mm)
Display Panel Cable
Length 9.8 ft
AWG 22
Temp Sensor Cable
Length 16.4 ft
AWG 24
Door Sensor Cable
Length 16.4 ft
AWG 24

Shipping

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project's success.
