HUUM Drop 7.5STU Pkg
Drop Series 7.5kW Sauna Heater Package
Model: DROP 7.5STU Pkg

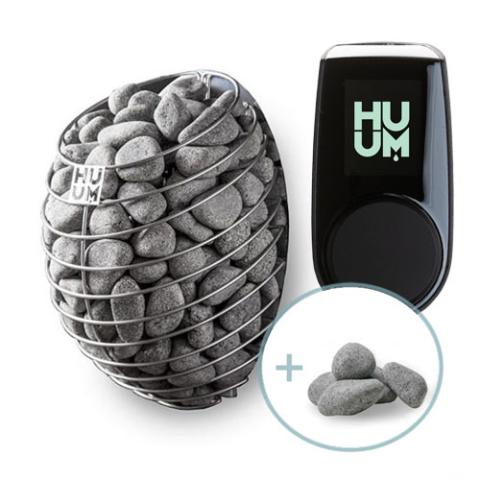

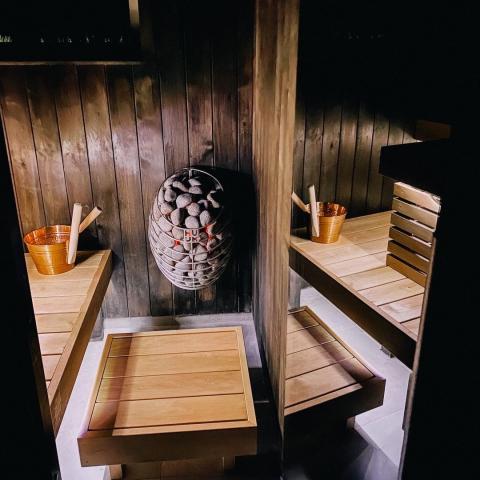

This HUUM DROP sauna heater package comes complete with the award-winning, compact DROP 7.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to transform your sauna space into your dream sauna sanctity. The package has been combined for use in sauna rooms up to 441 cubic feet (CF).
Wood safety rail sold separately.
Description
This HUUM DROP sauna heater package comes complete with the award-winning, compact HIVE DROP 7.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to transform your sauna space into your dream sauna sanctity. The package has been combined for use in sauna rooms up to 441 cubic feet (CF).
Features

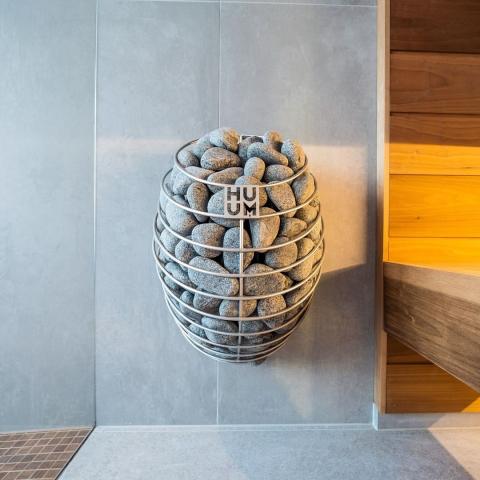

DROP 7.5kW Sauna Heater
- Unique water drop design
- 240V/1PH operation
- For sauna rooms from 230 to 441 cu. ft.
- Works with UKU controls (sold separately)
- 122 pound stone capacity (required 4 boxes sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Wall-mounted design
- Designed, engineered, and made in Estonia
- Dimensions: 15"W (390mm) x 13"D (335mm) x 23"H (590mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel

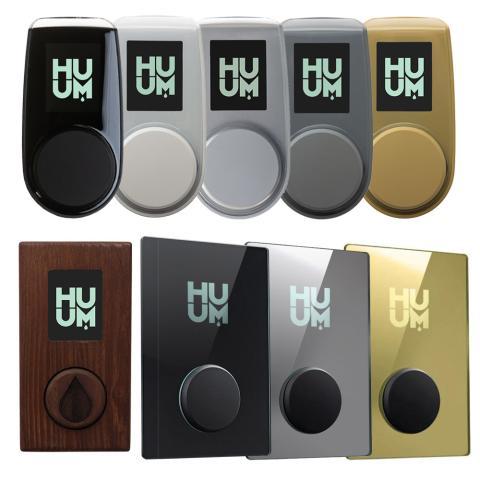

- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24

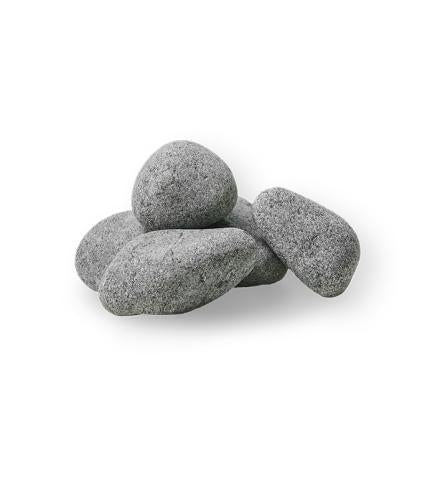

- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
DROP 7.5kW Sauna Heater
- 7.5kW Sauna heater
- Wall-mount bracket
- Installation and operation manual
- 5-Year limited warranty
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 24
- 132 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Specifications
| Model | DROP 7.5STU Pkg |
|---|
| Model | DROP 7.5 |
|---|---|
| Kilowatt Rating | 7.5 KW |
| Minimum Cubic Feet | 230 CF |
| Maximum Cubic Feet | 441 CF |
| Heater Weight | 25 lbs |
| Shipping Weight with Sauna Stones | 157 lbs |
| 240V, Single Phase Amperage | -- |
| Circuit Breaker Amperage | -- |
| Wire Size | -- |
| Width | 15"W (390mm) |
| Depth | 13"D (335mm) |
| Height | 23"H (590mm) |
| UKU | |
|---|---|
| Minimum Temperature Setting | 104 F |
| Maximum Temperature Setting | 230 F |
| Shipping Weight | 20 lbs |
| Console Dimensions | |
| Width | 2.2" (55mm) |
| Depth | 0.9" (22mm) |
| Height | 4.1" (105mm) |
| Main Module Dimensions | |
| Width | 3.5" (90mm) |
| Depth | 2.3" (58mm) |
| Height | 5.6" (142mm) |
| Display Panel Cable | |
| Length | 9.8 ft |
| AWG | 22 |
| Temp Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
| Door Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
Shipping
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project's success.
