HUUM STEEL 9.0STU Pkg
STEEL Series 9.0kW Sauna Heater Package
Model: STEEL 9.0STU Pkg

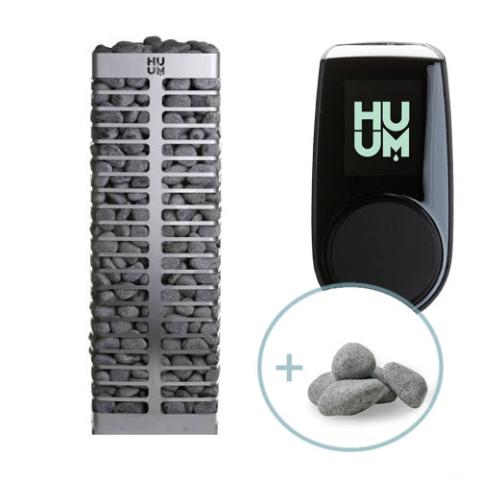

This HUUM Steel sauna heater package comes complete with the traditionally designed STEEL 9.0kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 529 cubic feet (CF).
Description
This HUUM Steel sauna heater package comes complete with the traditionally designed STEEL 9.0kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 529 cubic feet (CF).
Features
STEEL 9.0kW Sauna Heater
- Sleek design
- Suitable for use in saunas with limited space
- Small safety distances
- Heats up to 25% faster due to internal air duct
- For sauna rooms from 318 to 529 cu. ft.
- Works with UKU controls (sold separately)
- 331 pound stone capacity (required 10 boxes sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model
- Designed, engineered, and made in Estonia
- Dimensions: 12.6" W (320mm) x 12.6" W (320mm) x 38.4" H (975mm)
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel

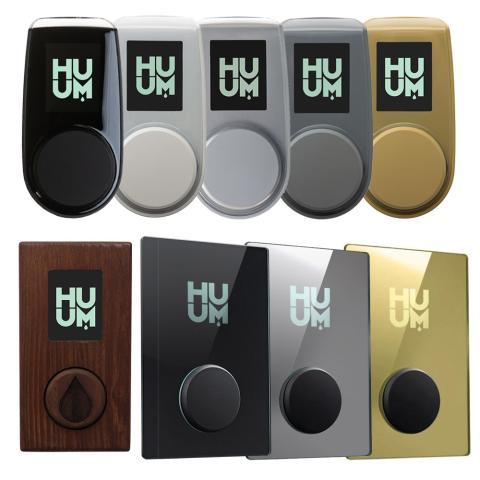

- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 12

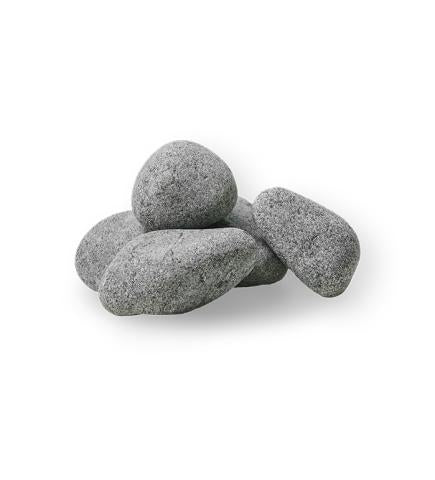

- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 1" to 2" (3-5 cm)
Includes
STEEL 9.0kW Sauna Heater
- 9.0kW sauna heater
- Installation and operation manual
- 5-Year limited warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 12
- 330 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones
Specifications
| Model | STEEL 9.0STU Pkg |
|---|
| STEEL 9.0 | |
|---|---|
| Kilowatt Rating | 9.0 KW |
| Minimum Cubic Feet | 318 CF |
| Maximum Cubic Feet | 529 CF |
| Heater Weight | 33 lbs |
| Shipping Weight with Sauna Stones | 364 lbs |
| 240V, Single Phase Amperage | -- |
| Width | 12.6" (320mm) |
| Depth | 12.6" (320mm) |
| Height | 38.4" (975mm) |
| UKU | |
|---|---|
| Minimum Temperature Setting | 104 F |
| Maximum Temperature Setting | 230 F |
| Shipping Weight | 20 lbs |
| Console Dimensions | |
| Width | 2.2" (55mm) |
| Depth | 0.9" (22mm) |
| Height | 4.1" (105mm) |
| Main Module Dimensions | |
| Width | 3.5" (90mm) |
| Depth | 2.3" (58mm) |
| Height | 5.6" (142mm) |
| Display Panel Cable | |
| Length | 9.8 ft |
| AWG | 22 |
| Temp Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
| Door Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
Shipping
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project's success.
Technical
STEEL Installation & Operation Manual
STEEL Spec Sheet
STEEL Elements Required
STEEL Warranty
UKU Installation & Operation Manual
UKU Install Diagram
UKU Installation Video
UKU Warranty
Extension Installation Manual
Extension Warranty
Stone Requirements
