ThermaSol WH14SP7S
Wellness Hydrovive14 Shower Package with 7" ThermaTouch Square, Digital Shower Vavle, Hydrovive 14 Shower Head
Model: WH14SP7S
SKU: WH14SP7S-MB

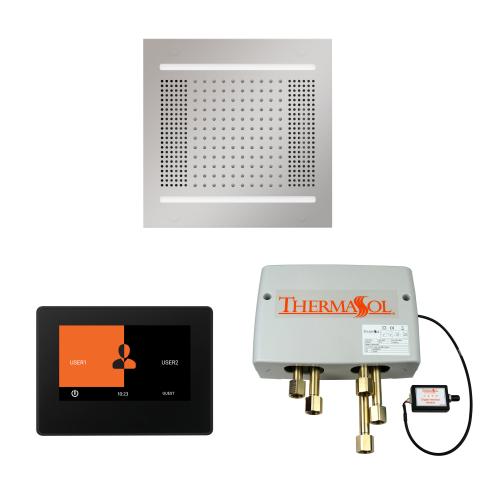

This ThermaSol package includes 7" ThermaTouch Square Control, Power Distribution Module, Digital Shower Valve, and Hydrovive 14 light and sound rain system. Available in multiple finishes.
Steam generator not included.
See Technical Tab for Finish Availability.
Description
Have a relaxing spa experience within the comfort of your home. This ThermaSol Shower Package contains the components for your best shower experience. The package includes 7" ThermaTouch Square Control, Power Distribution Module, Digital Shower Valve, and Hydrovive 14 light and sound rain system.
The 7" LCD touchscreen control gives you the options of downloading apps for shows, music, and more. Android and Alexa compatible. The control is fully waterproof so you even more options of where you want the control installed. WiFi , built in bluetooth, and ethernet connection along with two customizable user settings. The control operates steam, digital shower, light sound, and water fixtures.
The Hydrovive 14 adds distortion-free sound using enhanced audio technology mixed with full-spectrum LED lighting to bring your showering experience to the next level. Bringing you a multi-sensory experience mixing light, sound, and water at your fingertips.
The Digital Shower Valve adds to the elegance by eliminating the need for exposed valves and trims. The innovative ceramic disc valves ensures reliability and safety. Can be installed up to 30 feet away from your shower to work with all bathroom sizes. A battery backup is included.
Features
- Control fully waterproof
- Customizable user setting for two users
- Premium Hi-Fi audio output
- Android and Alexa compatible
- Control operates steam, digital shower, light sound, and water fixtures
- LED lighting
- Distortion-free sound
- Bluetooth compatibility
- Eliminates the need for exposed valves and trims
- Multiple finish options
- Output 9.25 GPM at 45 PSI
Includes
- ThermaTouch 7" Control
- Power Distribution Module
- Digital Shower Valve
- Hydrovive 14
Specifications
Model | WH14SP7S |
---|
Control | TT7 |
---|---|
Construction | Acrylic |
Audio Out | 1/8" Barrel Jack |
Display | 7" Wide LCD Touch Screen |
Shipping Weight | 1.8 lbs |
Width | 8-1/8" |
Depth | 2-1/2" |
Height | 6-1/8" |
Model | Digital Shower Valve |
---|---|
2 Inputs | 1/2" FNPT |
3 Outputs | 1/2" FNPT |
Power Supply | |
Input | 11VAC, 0.5 Amps |
Output | 15VDC, 3 Amps required |
Shipping Weight | 10.65 lbs |
Width | 11" |
Depth | 3" |
Height | 7" |
Model | HVLSR14 |
---|---|
Construction Material | Machined Brass |
Function Lights | 84 Full-color luminous LED |
Water Supply | 3/8”, 40-80 PSI, 1.8GPM |
Water Jets | 120 |
CEC Approved | Yes |
Amplifier | 100Watt RMS |
Digital Signal Processor | Built-In |
Weight | 22 lbs |
Width | 14" |
Depth | 8" |
Height | 14" |
Technical
Installation Manual
Control Overview
Digital Shower Valve Overview
HydroVive Overview
Specification Sheet
Finish Availability
