ThermaSol WH14STP7S
ThermaTouch 7", HydroVive 14, Steamvection, Steam Pkg, SQ
Model: WH14STP7S
SKU: WH14STP7S-PN

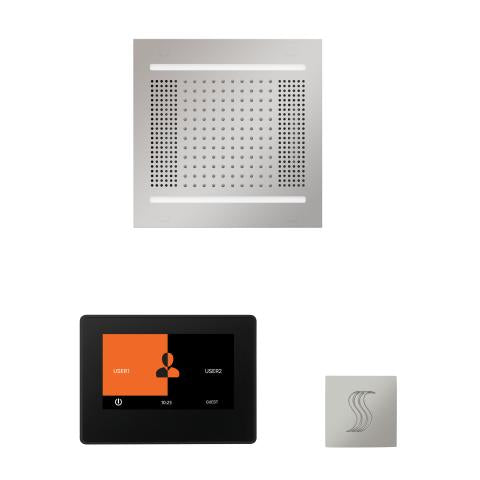

The ThermaSol Hydrovive Wellness Steam ThermaTouch package is designed to provide a complete steam experience right at your finger-tips. This wellness package includes a 7"Touchscreen, HydroVive 14 Rainhead, and SteamVection Steamhead.
Generator sold separately
Description
The ThermaSol Hydrovive Wellness Steam ThermaTouch package is designed to provide a complete steam experience right at your finger-tips. This wellness package includes a 7"Touchscreen, HydroVive 14 Rainhead, and SteamVection Steamhead.
Generator sold separately
Features
ThermaTouch7
- Steam Shower Control
- Fully waterproof
- Black or white control trim available
- WiFi built-in
- Internet-connected
- Ethernet connectability
- Automatic Firmware Updates
- Bluetooth (when paired with HydroVive or Serenity Rainhead)
- Android Power
- 30+ Apps: News, Sports, Music, etc.
- Watch Live TV
- RCA Output (for 3rd party speaker systems)
- Operates Smart Shower Valve (sold separately)
- Operates HydroVive (sold separately)
- Operates Serenity Rainhead (sold separately)
- Touchscreen Control
- Time & Temp Control
- Memory Settings
- 2 Customizable User Settings
- Date & Time Display
- Fahrenheit or Celsius Settings
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 8-1/8" W x 2-1/2" D x 6-1/8"H
- Lifetime Warranty (Parts and Labor - 2 years)
HydroVive14
- Ceiling mounted light, sound and rainhead system - all in a single self-contained module
- Lighting
- Full-spectrum LED Lighting
- 1600 lumens max
- 84 Full-color luminous LED (R,G,B,W)
- Color Changing “Mood Lighting”
- Preset Chromatherapy Chakras
- Custom user-programmable “any color”
- Audio
- Distortion-free sound
- Amplifier: 100Watt RMS,
- Built-in Digital Signal Processor
- Built-in Bluetooth v4.2
- 1" x 5" Full range dual driver speaker
- 1- 2” subwoofer module with tuned radiator
- Complete sound settings control
- volume
- treble
- mid-range
- bass
- Lighting
- 120 easy-clean neoprene jets
- 40-80 PSI
- 1.8GPM Water Jets
- CEC Approved
- Powered by:
- 24V DC
- 30 Watts power supply (provided)
- Designed, engineered, and crafted in the U.S.A
- Dimension: 14"W x 14"H
- 5 year replacement warranty (Limited Finish warranty)
SteamVection Steam Head
- Floor to ceiling consistent temperature
- Brass alloy material
- Available in round or square style
- 15 designer finishes available
- Whisper quiet
- Essential oil well for aromatherapy (sold separately)
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 1.75"W x 1.9"D x 1.75"H (Square) 1.75"Diameter x 1.9"Depth (Round)
- 5 year warranty
Includes
ThermaTouch7
- ThermaTouch 7 control
- M12 cable (25ft yellow)
- Silicone
- Power distribution module
- Power supply brick
- RCA cable (25ft)
- Mud ring
- Installation manual
- Warranty
- Static cling warning label
HydroVive14
- HydroVive 14
- Wood screws
- Silicone
- 25' Yellow M12 Cable
- 25' Audio Cable
- Installation instructions
- Warranty
SteamVection Steam Head
- SteamVection steam head
- Silicone
- Lubricant
- Installation manual
- Warranty
Specifications
Model | WH14STP7S |
---|
ThermaTouch7 | |
---|---|
Construction | Acrylic |
Audio Out | 1/8" Barrel Jack |
Display | 7" Wide LCD Touch Screen |
Shipping Weight | 1.8lbs |
Width | 8-1/8" |
Depth | 2-1/2" |
Height | 6-1/8" |
HydroVive14 | |
---|---|
Construction Material | Machined Brass |
Function Lights | 84 Full-color luminous LED |
Water Supply | 3/8”, 40-80 PSI, 1.8GPM |
Water Jets | 120 |
CEC Approved | Yes |
Amplifier | 100Watt RMS |
Digital Signal Processor | Built-in |
Weight | 22 lbs |
Width | 14" |
Depth | 8" |
Height | 14" |
SteamVection | |
---|---|
Material | Brass Alloy |
Connection | 1/2" NPT |
Shipping Weight | 1 lb |
Square Style Dimensions | |
Width | 1.75" |
Depth | 1.9" |
Height | 1.75" |
Round Style Dimensions | |
Diameter | 1.75" |
Depth | 1.9" |
Technical
ThermaTouch7 Installation & Operation Manual
Control Overview
HydroVive14 Installation & Operation Manual
HydroVive14 Specification Sheet
HydroVive Overview
SteamVection Manual
SteamVection Specification Sheet
Steam Head Overview
Finish Availability
