HUUM Thru-Ceiling Chimney Kit
Sauna Wood Stove Chimney Set, Thru-Ceiling
Model: THRU-CEILING CHIMNEY
SKU: 4744103017508

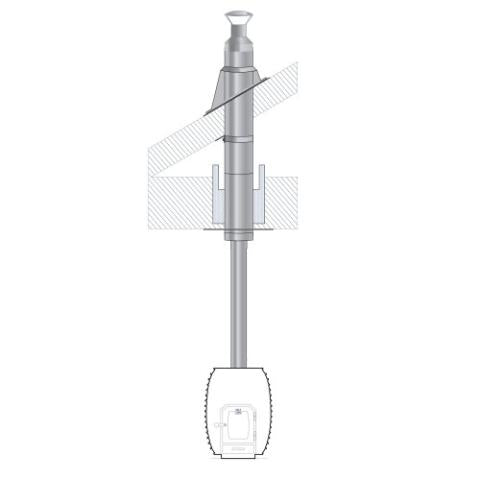

This HUUM thru-ceiling sauna wood stove chimney set is designed to extend straight up through the ceiling and is compatible with all HUUM's wood-fired sauna stoves. This premium set includes everything needed to provide your sauna experience with both beautiful form and safe-minded function.
SEE SHIPPING TAB
Description
This chimney set is designed to extend straight up through the ceiling and is compatible with HUUM's wood-fired sauna stoves. The set includes a single-wall 1m pipe, a welded chimney base, a double-wall 0.5-meter chimney, a cover plate in two parts for an including ceiling, a partition ceiling insulation with cooling T600 (which is optional), a roof rafter attachment to the chimney, a double-wall straight 1-meter pipe, a roof underlay seal 160-230 (which is also optional), a ventilated roof flashing 20-35 degrees, a rain collar, and a chimney cap.
Features
- Through ceiling
- Compatible with all HUUM wood sauna stoves
- Stainless steel
- T600 cooling insulation
- Mounts in vertical position
- Works with smaller fireplaces
- Designed, engineered, and made in Estonia
- Limited 5-year warranty

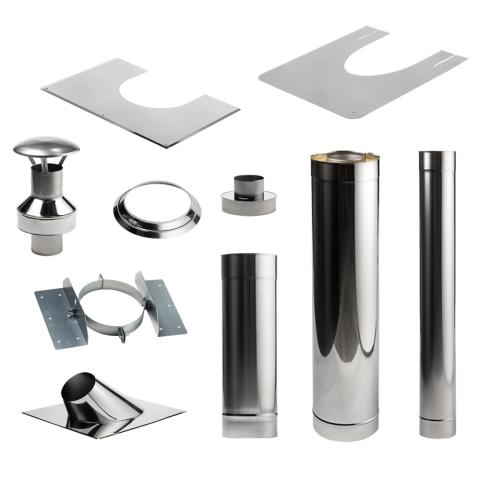

Includes
- Single-wall pipe
- Welded chimney base
- Double-wall chimney
- Inclined ceiling cover plates (2 parts)
- Partition ceiling insulation with cooling T600 (optional)
- Roof rafter attachment to the chimney
- Double-wall straight pipe
- Roof underlay seal
- Ventilated roof flashing
- Rain collar
- Chimney cap
- Installation manual
- 5 year limited warranty
Specifications
Model | THRU-CEILING CHIMNEY KIT |
---|---|
Single-wall pipe length | 39.37" (1000mm) |
Double-wall chimney length | 19.7" (500mm) |
Roof Flashing line | 20-35 degrees |
Material | Stainless Steel |
Total Length | 108.3" (2750mm) |
Shipping
When this product is ordered alone, with no additional products, it may carry additional delivery expenses.
Technical
Spec Sheet
