ThermaSol MTMR
Steam Shower Control, MicroTouch Series, Modern Recessed
Model: MTMR
SKU: MTMR-WH

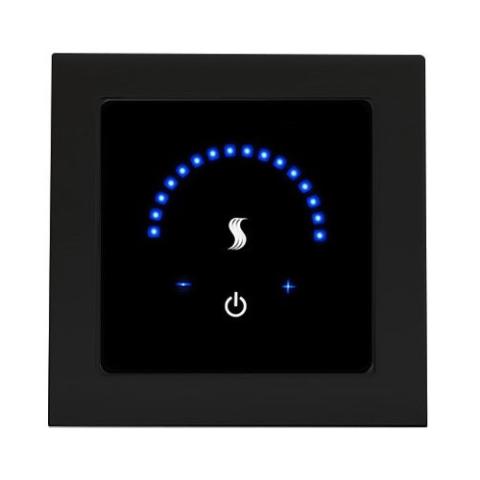

This in-shower MicroTouch steam-only control uses captive touch technology and infrared sensing technology. Controls on/off power, shower duration, and temperature.
See Technical tab for Finish availability
Control only
Description
This low profile in-shower steam-only control comes in 15 designer finishes. Capacitive touch technology, which is also used in mobile devices, makes this control seamless to use. Paired with Infrared Sensing Technology makes this control a great choice.
The Infrared Sensing Technology allows you to read temperature easily, much faster, and more accurately versus standard contact temperature sensors.
This control allows you to control on/off, shower duration, and temperature.
See Technical tab for Finish availability
Features
- Capacitive touch technology
- Built-in temperature sensor
- Set desired steam shower temperature
- Recall previous temperature
- Preset 45-minute timer
- Operates Auto PowerFlush™
- Operates FastStart™
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 3.75" x 3.75" x 0.63"
- Lifetime Warranty (Parts and Labor - 2 years)
See Technical tab for Finish availability
Includes
- Controller
- Silicone
- 50-foot control data cable (included with PRO or AF Series generator)
- Installation manual
- Warranty
- Static cling warning label
Specifications
| Model | MTMR |
|---|---|
| Construction | 6061 Billet Aluminum |
| Display | 16 LED Temperature Display |
| Interface | 3 Capacitive Touch Buttons |
| Communication | ThermaSol CAN Bus |
| Supply Voltage | 5V DC |
| Shipping Weight | 4 lbs |
| Width | 3.75" |
| Depth | 0.63" |
| Height | 3.75" |
Technical
Installation Manual
Spec Sheet
Control Overview
Finish Availability
