Kohler K-528-K1
DTV+ Series, Digital 2-Port Thermostatic Valve
Model: K-528-K1
SKU: K-528-K1
This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital system, and its easy plug-and-go design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. Additionally, with the DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
Required items sold separately
Description
This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital system, and its easy plug-and-go design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. Additionally, with the DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
Features
- Designed to work with a DTV+ digital system either individually or with a second digital valve (two, three, or six-port valve).
- For use in showering and/or bathing applications.
- Up to 13 gallons per minute (49.2 L) flow rate with maximum flow of 8 gallons per minute (30.3 L) from one outlet.
- 1/2-inch hot/cold supply inlets.
- Pre-wired with three-prong plug for connection to 110v AC receptacle.
- Mounts within standard 2" x 4" walls.
- Two independently controllable 1/2-inch outlets.
- Equipped with BLUETOOTH® technology allowing communication through the KOHLER Mode App
Includes

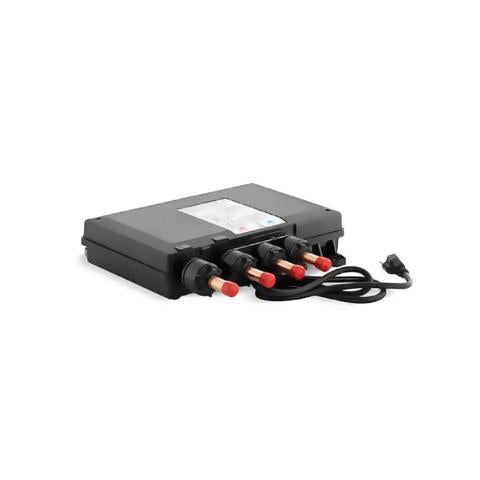

- Digital 2-Port Thermostatic Valve
- Plug - AC
- 5 year limited warranty
Specifications
Model | K-528-K1 |
---|---|
Mount | Wall |
Voltage | 120V |
Amperage | 15 Amps |
Hertz | 60 Hz |
UL Rated | Yes |
CSA | Yes |
Circuits Required | 1 dedicated Class A GFCI |
Width | 13-3/8" (340mm) |
Depth | 12-1/2" (318mm) |
Height | 2-11/16" (68mm) |
Technical
Installation and Operation Manual
Spec Sheet
Service Parts
Warranty
Product Registration
https://www.us.kohler.com/us/static/warrantyForm.jsp
Required for Operation:
Price: $1,569.10
