ThermaSol DSP-SIGF
Available Finishes:Polished Nickel
Quantity:

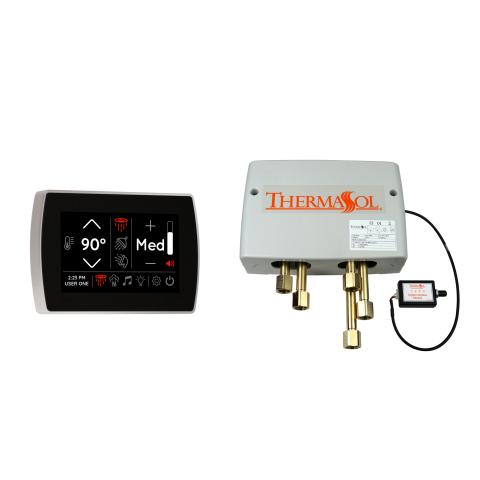

SignaTouch 5", Digital Shower Valve, Shower Control Pkg, Flushmount
Model: DSP-SIGF
Customizable user setting for up to two users and available in multiple designer finishes. The ThermaSol DSP-SIGF package includes the SignaTouch 5" Control and the Digital Shower Valve. It operates the Auto PowerFlush™ and FastStart™ systems.
Steam generator not included.
Description
Customizable user setting for up to two users and available in multiple designer finishes. The ThermaSol DSP-SIGF package includes the SignaTouch 5" Control and the Digital Shower Valve. It operates the Auto PowerFlush™ and FastStart™ systems.
Steam generator not included.
Features
- Customizable user settings for two users
- Operates Auto PowerFlush™ and FastStart™ systems
- Multiple Designer Finishes
Includes
- SignaTouch 5" Control
- Digital Shower Valve
Specifications
| Model | DSP-SIGF |
|---|
| Model | STCM |
|---|---|
| Construction | 6061 Aluminum |
| Display | 5" Capacitive Touch Screen |
| Display Full Color | 16.7M |
| Display resolution | 480 x 800 |
| Interface | Single Touch |
| Shipping Weight | 1.25 lbs |
| Width | 5.7" |
| Depth | 1.25" |
| Height | 4.8" |
| Installation | In Shower |
| Model | Digital Shower Valve |
|---|---|
| 2 Inputs | 1/2" FNPT |
| 3 Outputs | 1/2" FNPT |
| Power Supply | |
| Input | 11VAC, 0.5 Amps |
| Output | 15VDC, 3 Amps required |
| Shipping Weight | 10.65 lbs |
| Width | 11" |
| Depth | 3" |
| Height | 7" |
Technical
Installation and Operation Manual
ThermaSol-DSP-SIGF-IOM.pdf3.41 MB
Specification Sheet
ThermaSol-DSP-SIGF-Spec-Sheet.pdf891.14 KB
SignaTouch Control Overview
Digital Shower Valve Overview
Finish Availability
