Amerec IDS
Quantity:

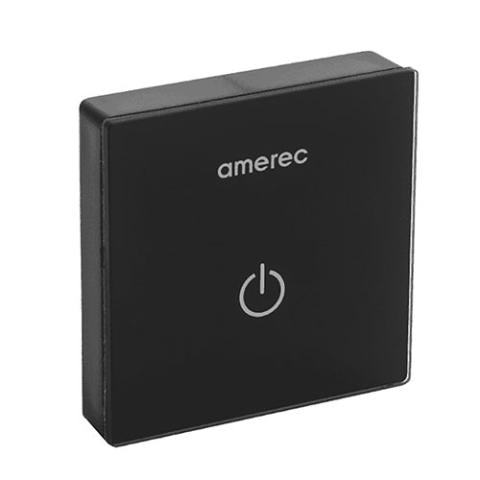

Refresh Steam System, AI Series, Amerec
Model: IDS
SKU: 9226-151
When selected, this “Refresh” Switch option gives the bather a more immediate control over the steam room conditions.
Description
By pressing the “Refresh” switch while steam bathing, an extra 10-second burst of steam is added to the room, regardless of the steam room temperature. One per steam room.
Features
- 10-second countdown timer operation
- Mode indicator LED
- 5V DC operation
- 2 minute off delay protecting system from abuse
Includes
- IDS electronic switch, 2-1/4” diameter, 2” deep
- 3-lead, 25’ control cable
- Cable strain relief
- Installation and operation manual
Specifications
| Model | IDS |
|---|---|
| Shipping Weight | 5 lbs |
| DC Voltage | 5V DC |
| Control "Rough In" Cut Out | 1-7/8" Diameter |
| Control Sensor Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
| Generator Control Connection | 3 Position Terminal Block |
| Generator Control Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
| Depth | 2" |
| Diameter | 2-1/4" |
Technical
Installation and Operation Manual
IDS Refresh IOM.pdf275.64 KB
