SaunaLife M3 Wood-Burning Stove Kit BK LG Floor
M3 Stove, Protective Bedding, Protective Sheath, Chimney Kit, Large Floor Kit, Black
Model: SaunaLife M3 Stove Kit BK-LG FLK

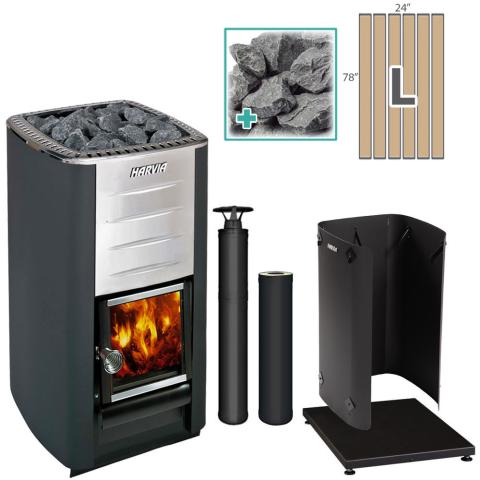

The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, protective sheath, large floor kit, as well as a ceiling frame. With this package your dream sauna is just one "add to cart" click away.
Description
The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, protective sheath, large floor kit, as well as a ceiling frame. With this package your dream sauna is just one "add to cart" click away.
Features
M3 Heater
- 16.5 kilowatts
- Stainless Steel
- Black color
- Floor installation
- Wood burning stove
- For sauna rooms 212 cu. ft. to 459 cu. ft.
- Dimensions: 15" W x 18" D x 28" H
- 2 year warranty
Stones
- Olivine diabase sauna stones
- Split-Face
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Protective Bedding
- Aluminum-zinc coated steel
- Black
- Adjustable feet
- For wood burning sauna heaters
- Helps protect floors
- Dimensions: 17.7" W (450mm), 26" D (665mm), 2.4"-3" H (60-75mm)
- Can be installed on a sloping floor
- 2 year warranty
1500MM Chimney Kit
- Black powder coated steel
- CE marking
- Mineral wool insulation material
- Mounts in vertical position
- Works with wood-heated stoves
- Works with smaller fireplaces
- Works with iron-stoves
- Able to be easily extended
- Touch protection is not needed if installed in a sauna
- Sootfire resistant
- Freeze thaw resistant
- Made in Finland
- 2 year warranty
1000MM Chimney Extension
- Innovative design
- Black powder coated steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
- 2 year warranty
Protective Sheath
- 3-sided sheath
- Black color
- Reduces safety distance to combustible materials
- 2 year warranty
Floor Kit
- Dimensions: 4"D x 24"W x 78"L
Ceiling Frame
- Dimensions: 33.5" x 18.5" x 3.75"
Includes
M3 Heater
- Sauna heater
- Adjustable legs
- Stove door
- Ash box
- Installation and operation manual
- 2 year warranty
Stones
- 2 boxes
Protective Bedding
- Harvia Stove Protective Bedding
- Installation manual
- 2 year warranty
1500MM Chimney Kit
- Black powder coated chimney
- Utility box
- Non-insulated smoke pipe
- Rain cap
- Rubber rain flange
- Installation set for rain flange
- Stainless steel lead-through flange for ceiling
- Lead-through insulation and protector
- Installation manual
- 2 year warranty
1000MM Chimney Extension
- 1000mm black chimney extension
- 2 year warranty
Protective Sheath
- 3 sided sheath
- Installation Manual
- 2 year warranty
Floor Kit
- Large Floor Kit
Ceiling Frame
- Ceiling Frame (1)
Specifications
| Model | M3 |
|---|---|
| Kilowatt Rating | 16.5 kW |
| Primary Fuel | Wood |
| Minimum Cubic Feet | 211 CF |
| Maximum Cubic Feet | 459 CF |
| Heater Weight | 97 lbs |
| Shipping Weight with Sauna Stones | 163 lbs |
| Width | 15" |
| Depth | 18" |
| Height | 28" |
| Model | WL100 |
|---|---|
| Material | Steel |
| Weight | 23.5 lbs |
| Width | 17.7" (450mm) |
| Depth | 26" (665mm) |
| Height | 2.4"-3" (60-75mm) |
| Model | WHP1500M |
|---|---|
| Material | Black powder coated steel |
| Non-vertical installations | Not Allowed |
| Product Height | 59" (1500mm) |
| Product Diameter | 8-5/8" (220mm) |
| Net Weight | 25 lbs |
| Model | WHP1000M |
|---|---|
| Flexural Strength- tensile strength | 16.4 ft (5m) |
| Non-vertical installations | Not Allowed |
| Wind Load | 6.5 ft (2m) above last support |
| Maximum spacing of lateral supports | 9.8 ft (3m) |
| Weight | 14.8 lbs |
| Diameter | 8.6" (220mm) |
| Height | 39.3" (1000mm) |
| Model | WL450 |
|---|---|
| Weight | 14 lbs |
| Width | 17.91" |
| Depth | 18.89" |
| Height | 31.49" |
| Model | E8 FLOOR |
|---|---|
| Dimensions | 4"D x 24"W x 78"L |
| Model | Barrel Ceiling Frame |
|---|---|
| Dimensions | 33.5" x 18.5" x 3.75" |
Technical
M3 Heater Installation & Operation Manual
M3 Heater Datasheet
M3 Safety Sheet
M3 Declaration of Performance
Protective Bedding Installation & Operation Manual
Chimney Kit Installation & Operation Manual
Chimney Extension Manual
Protective Sheath Manual
Protective Sheath Safety Distances
Shipping
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project success.
