SaunaLife M3 Wood-Burning Stove Kit BK SM Floor
SaunaLife M3 Wood-Burning Stove Kit BK SM Floor
SaunaLife M3 Wood-Burning Stove Kit BK SM Floor

SaunaLife M3 Wood-Burning Stove Kit BK SM Floor

$4,012.00
Quantity:

M3 Stove, Protective Bedding, Protective Sheath, Chimney Kit, Small Floor Kit, Black

Model: SaunaLife M3 Stove Kit BK-SM FLK

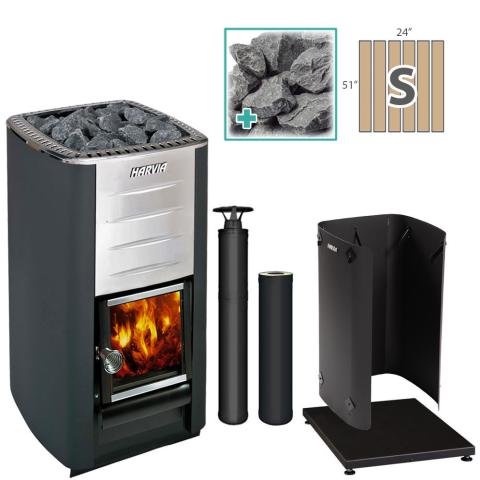

The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, protective sheath, small floor kit, as well as a ceiling frame. With this package your dream sauna is just one "add to cart" click away.

Description

The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, protective sheath, small floor kit, as well as a ceiling frame. With this package your dream sauna is just one "add to cart" click away.

Features

M3 Heater

  • 16.5 kilowatts
  • Stainless Steel
  • Black color
  • Floor installation
  • Wood burning stove
  • For sauna rooms 212 cu. ft. to 459 cu. ft.
  • Dimensions: 15" W x 18" D x 28" H
  • 2 year warranty

Stones

  • Olivine diabase sauna stones
  • Split-Face
  • Durable with high-heat capacity
  • Stones range from 4" to 6" (10-15 cm)

Protective Bedding

  • Aluminum-zinc coated steel
  • Black
  • Adjustable feet
  • For wood burning sauna heaters
  • Helps protect floors
  • Dimensions: 17.7" W (450mm), 26" D (665mm), 2.4"-3" H (60-75mm)
  • Can be installed on a sloping floor
  • 2 year warranty

1500MM Chimney Kit

  • Black powder coated steel
  • CE marking
  • Mineral wool insulation material
  • Mounts in vertical position
  • Works with wood-heated stoves
  • Works with smaller fireplaces
  • Works with iron-stoves
  • Able to be easily extended
  • Touch protection is not needed if installed in a sauna
  • Sootfire resistant
  • Freeze thaw resistant
  • Made in Finland
  • 2 year warranty

1000MM Chimney Extension

  • Innovative design
  • Black powder coated steel
  • Prevents movement caused by temperature changes
  • Can be installed indoors and outdoors
  • Designed, engineered, and made in Finland
  • Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
  • 2 year warranty

Protective Sheath

  • 3-sided sheath
  • Black color
  • Reduces safety distance to combustible materials
  • 2 year warranty

 Floor Kit

  • Dimensions: 4"D x 24"W x 51"L

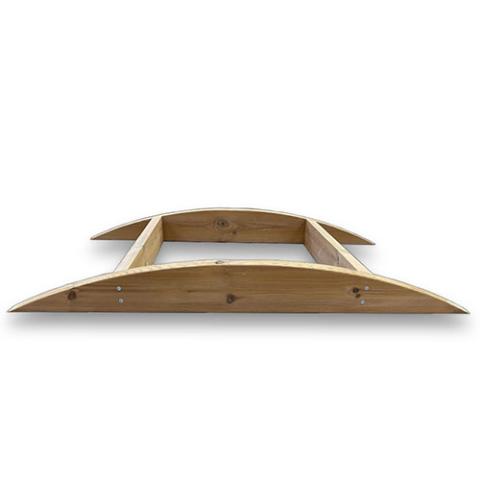

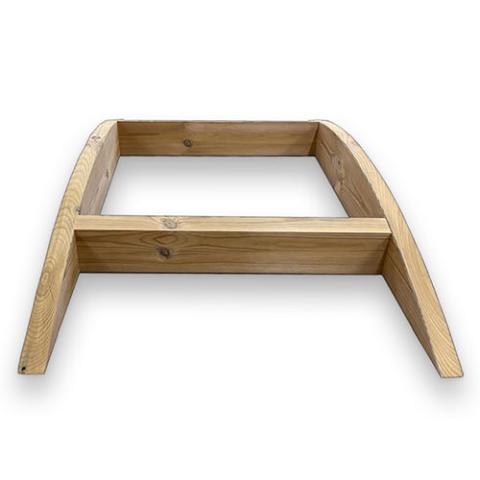

Ceiling Frame

  • Dimensions: 33.5" x 18.5" x 3.75"

Includes

M3 Heater

  • Sauna heater
  • Adjustable legs
  • Stove door
  • Ash box
  • Installation and operation manual
  • 2 year warranty

Stones

  • 2 boxes

Protective Bedding

  • Harvia Stove Protective Bedding
  • Installation manual
  • 2 year warranty

1500MM Chimney Kit

  • Black powder coated chimney
  • Utility box
  • Non-insulated smoke pipe
  • Rain cap
  • Rubber rain flange
  • Installation set for rain flange
  • Stainless steel lead-through flange for ceiling
  • Lead-through insulation and protector
  • Installation manual
  • 2 year warranty

1000MM Chimney Extension

  • 1000mm black chimney extension
  • 2 year warranty

Protective Sheath

  • 3 sided sheath
  • Installation Manual
  • 2 year warranty

Floor Kit

  • Small Floor Kit

Ceiling Frame

  • Ceiling Frame (1)

Specification

Model M3
Kilowatt Rating 16.5 kW
Primary Fuel Wood
Minimum Cubic Feet 211 CF
Maximum Cubic Feet 459 CF
Heater Weight 97 lbs
Shipping Weight with Sauna Stones 163 lbs
Width 15"
Depth 18"
Height 28"
Model WL100
Materiral Steel
Weight 23.5 lbs
Width 17.7" (450mm)
Depth 26" (665mm)
Height 2.4"-3" (60-75mm)
Model WHP1500M
Material Black powder coated steel
Non-vertical installations Not Allowed
Product Height 59" (1500mm)
Product Diameter 8-5/8" (220mm)
Net Weight 25 lbs
Model WHP1000M
Flexural Strength- tensile strength 16.4 ft (5m)
Non-vertical installations Not Allowed
Wind Load 6.5 ft (2m) above last support
Maximum spacing of lateral supports 9.8 ft (3m)
Weight 14.8 lbs
Diameter 8.6" (220mm)
Height 39.3" (1000mm)
Model WL450
Weight 14 lbs
Width 17.91"
Depth 18.89"
Height 31.49"
Model E6FLOOR
Dimensions 4"D x 24"W x 51"L
Model Barrel Ceiling Frame
Dimensions 33.5" x 18.5" x 3.75"

Technical

Shipping

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project success.
