Harvia Legend PKG BLK

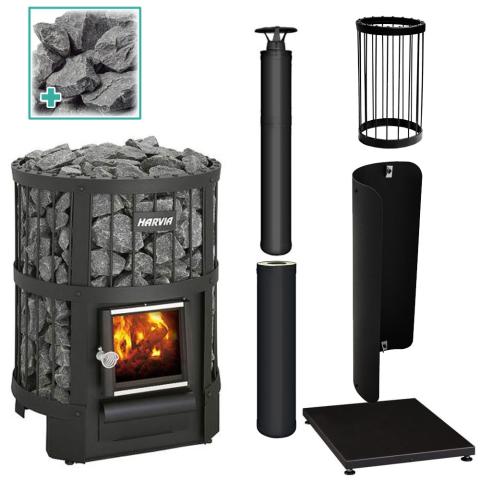

Harvia Legend Package, Legend 150 Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, Stones
Model: LEGEND 150 PACKAGE BK
The Harvia Legend package is your one stop shop for a truly delightful sauna experience. This package contains: the Harvia Legend 150 Stove, Protective Bedding, Protective Sheath, 1500M Chimney Kit, 1000MM Chimney Extension, and Stones. The steel frames from the 150 Wood Burning Stove ensure the perfect placement of each stone to deliver the best, yet gentle heat distribution. Imagine this beautifully put together combination in your oasis of sauna and fully immerse yourself with pleasant steam, a warm glow, and crackling fire.
Description
The Harvia Legend package is your one stop shop for a truly delightful sauna experience. This package contains: the Harvia Legend 150 Stove, Protective Bedding, Protective Sheath, 1500M Chimney Kit, 1000MM Chimney Extension, and Stones. The steel frames from the 150 Wood Burning Stove ensure the perfect placement of each stone to deliver the best, yet gentle heat distribution. Imagine this beautifully put together combination in your oasis of sauna and fully immerse yourself with pleasant steam, a warm glow, and crackling fire.
Features
Harvia Legend 150 Stove
- Wood-Burning
- Heats two rooms
- Cleaner and efficient burning
- 16kW
- For sauna rooms from 212-459 cu. ft.
- Requires a minimum of 264lbs of stones ( 6 boxes-AC3020)
- Black steel frame
- Floor model
- Adjustable feet
- Designed, engineered, and made in Finland
- Dimensions: 21"W (530mm) x 28"D (730mm) x 30"H (740mm)
- 2-year warranty (Consumer use)
Protective Bedding LG
- Aluminum-zinc coated steel
- Black
- Adjustable feet
- For wood-burning sauna heaters
- Helps protect floors
- Dimensions: 22" W (560mm), 25" D (636mm),2"-3" H (60-75mm)
- Can be installed on a sloping floor
- 2-Year
WL200 Protective Sheath
- Protective Sheath mounted can range from 1 to 3 as required
- Black color
- Reduces safety distance to combustible materials
- 2-Year warranty (Consumer use)
WHP1500M Chimney Kit
- Black powder coated steel
- CE marking
- Mineral wool insulation material
- Mounts in vertical position
- Works with wood-heated stoves
- Works with smaller fireplaces
- Able to be easily extended
- Sootfire resistant
- Freeze thaw resistant
- Made in Finland
- 2-year warranty
WHP1000M Chimney Extension
- Innovative design
- Black powder-coated steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
- 2-year warranty
Stones
- Olivine diabase sauna stones
- Split-Face
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Includes
Harvia Legend 150 Stove
- Sauna Stove
- Stove Door
- Ash box
- Installation and Operation Manual
- 2-year Warranty (Consumer use)
Protective Bedding SM
- Harvia Stove Protective Bedding
- Installation manual
- 2 year warranty
WL200 Protective Sheath
- Protective Sheath mounted can range from 1 to 3 as required
- Black color
- Reduces safety distance to combustible materials
- 2-Year warranty (Consumer use)
WHP1500M Chimney Kit
- Black powder coated chimney
- Utility box
- Non-insulated smoke pipe
- Rain cap
- Rubber rain flange
- Installation set for rain flange
- Stainless steel lead-through flange for ceiling
- Lead-through insulation and protector
- Installation manual
- 2 year warranty
WHP1000M Chimney Extension
- 1000mm black chimney extension
- 2 year warranty
Stones
- 6 boxes of 44 lb box of 4" to 6" (10-15 cm)
Specifications
| Model | Legend 150 |
|---|---|
| Kilowatt Rating | 16kW |
| Primary Fuel | Wood |
| Maximum Firewood Length | 15" (39cm) |
| Diameter of Firewood | 3-5.9" (8-15cm) |
| Minimum Cubic Feet | 212 CF |
| Maximum Cubic Feet | 459 CF |
| Minimum Room Height | 69" (1750mm) |
| Flue Connection Location | Back, Top |
| Heater Weight | 135 lbs |
| Shipping Weight with Sauna Stones | 399 lbs |
| Width | 21" (530mm) |
| Depth | 28" (730mm) |
| Height | 30" (740mm) |
| Model | WL110 |
|---|---|
| Materiral | Steel |
| Weight | 26.5 lbs |
| Width | 22" (560mm) |
| Depth | 25" (636mm) |
| Height | 2"-3" (60-75mm) |
| Model | WL200 |
|---|---|
| Weight | 15 lbs |
| Width | 20" (520mm) |
| Depth | 5" (125mm) |
| Height | 39" (1000mm) |
| Model | WHP1500M |
|---|---|
| Material | Black powder coated steel |
| Non-vertical installations | Not Allowed |
| Product Height | 59" (1500mm) |
| Product Diameter | 8-5/8" (220mm) |
| Net Weight | 25 lbs |
| Model | WHP1000M |
|---|---|
| Flexural Strength- tensile strength | 16.4 ft (5m) |
| Non-vertical installations | Not Allowed |
| Wind Load | 6.5 ft (2m) above last support |
| Maximum spacing of lateral supports | 9.8 ft (3m) |
| Weight | 14.8 lbs |
| Diameter | 8.6" (220mm) |
| Height | 39.3" (1000mm) |
Shipping
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project success.
Technical
Harvia Legend 150 Stove Installation and Operation Manual
Harvia Legend 150 Datasheet
Harvia Legend 150 Stone Requirements
Protective Bedding Manual
Protective Sheath Manual
Chimney Kit Manual
Chimney Extension Manual
