Mr. Steam 104522MS
Quantity:
Rough-In Package, 10 in
Model: 104522MS
SKU: 104522MS
The package has everything you need for the rough in stage of a steam shower system installation of a MS Generator, and features an AutoFlush®, a Condensation Pan®, and a 30-foot control cable.
Description
The package has everything you need for the rough in stage of a steam shower system installation of a MS Generator, and features an AutoFlush®, a Condensation Pan®, and a 30-foot control cable.
Features
- Complete rough in kit for use with all MrSteam MS Generators
- AutoFlush introduces fresh water before each steam bath and drains the MS Series Generator tank following use
- Condensation Pan installs beneath the MS Steam Generator, connects to an approved drain line to collect, and direct a potential water accumulation or leak
- 30-Foot Control Cable for iSteam3, iTempoPlus and iTempo Steam Shower Controls

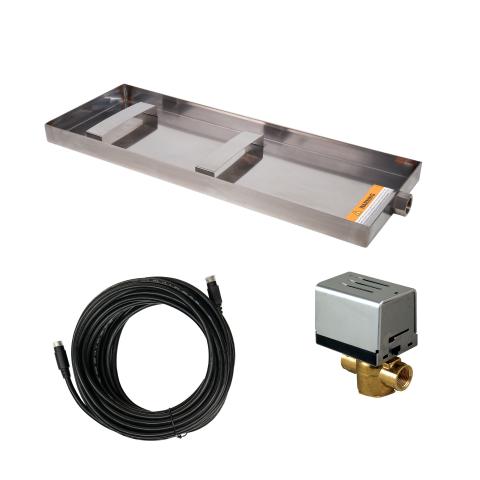

Includes
- Autoflush® System
- Condensation Pan
- 30-Foot Control Cable
Specifications
| Model | MS 103867 (Condensation Pan) |
|---|---|
| Shipping Weight | 4 lbs |
| Length | 25" |
| Width | 9" |
| Height | 1-1/2" |
| Model | MS 81500E (AutoFlush) |
|---|---|
| Shipping Weight | 6 lbs |
| AC Voltage | 24V AC |
| DC Voltage | 24V DC |
| Generator Steam Line Connection | 1/2” NPT |
| Drain Connection | 1/2” NPT |
| Generator Control Connection | 3-Pin Plug-In Connector |
| Generator Control Cable | 21-1/2", 2 Conductor, 18 AWG, Shielded Cable |
| Width | 3-1/4" Not Including Mounting Fittings |
| Depth | 2-1/2" |
| Height | 4-1/4" |
