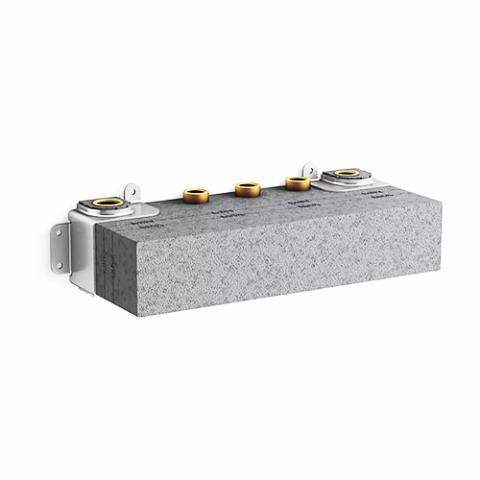

Kohler 26342
Anthem Four-Port Recessed Mechanical Thermostatic Valve
Model: 26342
SKU: 26342
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is suited for applications where four shower outlets are required.
Required Control sold separately.
Description
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is suited for applications where four shower outlets are required.
Features
- High-flow thermostatic mixing valve
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
- Service stops with integral filters
- Antiscald protection
- Integrated adjustable high-temperature limit stop to control maximum water temperature
- Adjustable comfort setting (preset at approximately 104°F)
- Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow rate of 7 gpm (26.5 lpm) from one outlet
- Includes optional flow restrictor, limiting total flow rate to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC compliance is desired
- 3/4" female NPT inlet
- 1/2" female NPT outlet
Includes
- Four-Port Recessed Mechanical Thermostatic Valve
- Flow Restrictor
Specifications
Model | 26342 |
---|---|
Max Flow Rate | 8 gpm and 7 gpm from one outlet |
NPT Inlet | 3/4" female |
NPT Outlet | 1/2" female |
