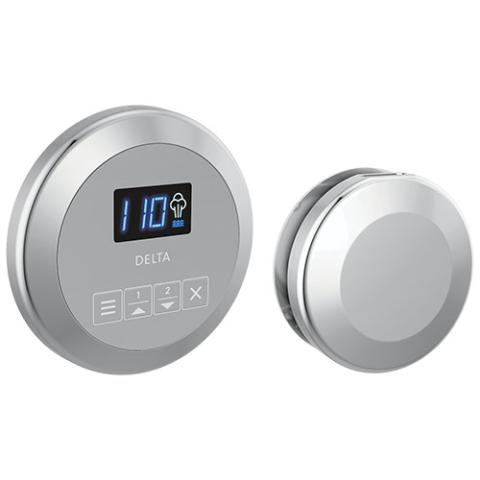

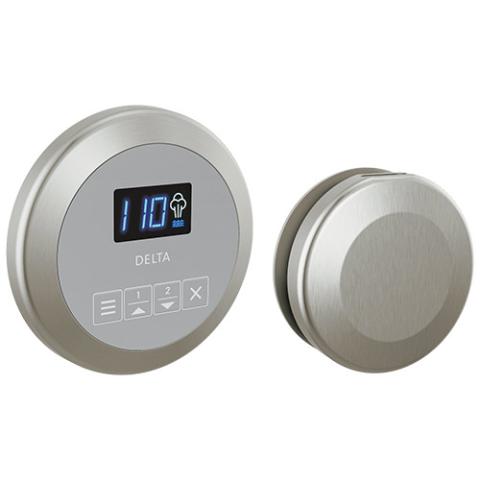

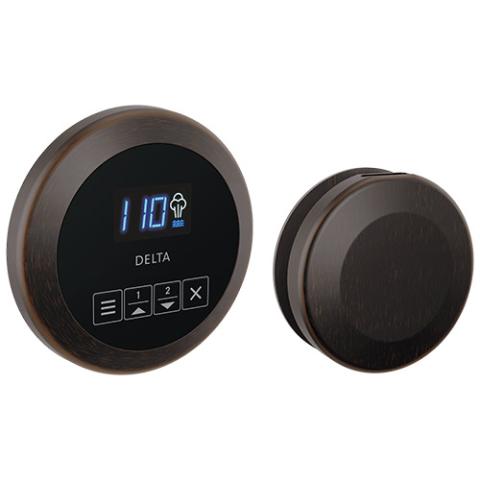

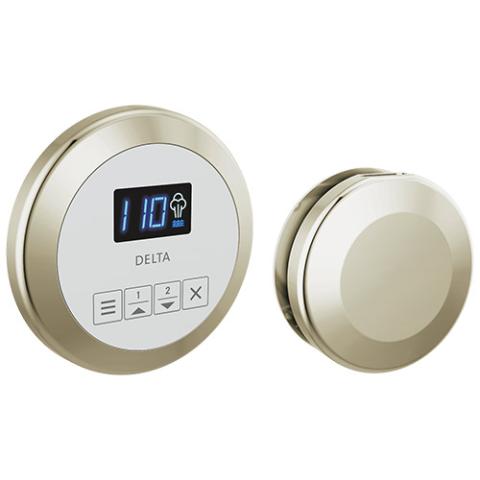

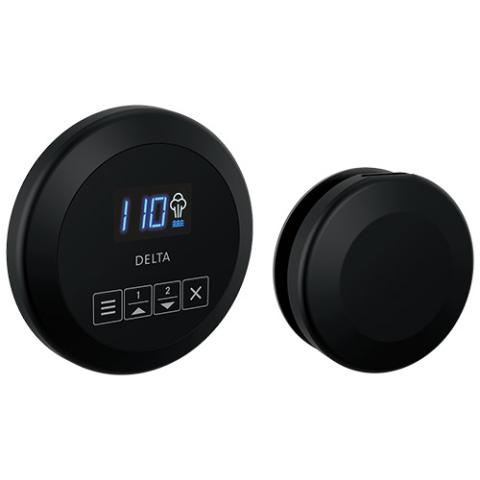

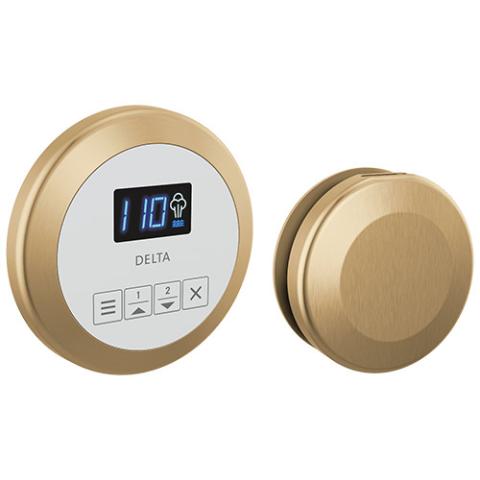

Delta SteamScape™ Classic Round System
SteamScape™ Round Control and Round Steam Head
Model: 5CH-250R
SKU: 5CH-250R-PR
With the Delta® SteamScape™ Classic System, you can relax knowing you have a steam experience tailored to fit your needs. Featuring two user presets, a wide selection of finishes, and a steadier, more enjoyable steam environment, this system is here to maximize your calm. Discover how it can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with a classic Round Control and Round Steam Head.
Generator Sold Separately
Description
With the Delta® SteamScape™ Classic System, you can relax knowing you have a steam experience tailored to fit your needs. Featuring two user presets, a wide selection of finishes, and a steadier, more enjoyable steam environment, this system is here to maximize your calm. Discover how it can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with a classic Round Control and Round Steam Head.
Features
SteamScape™ Round Control
- Control turns system off and on and adjusts temperature and duration
- Temperature digital display of ambient temperature, set point and cycle time, system status, and diagnostic error codes.
- Steam and water cycle icon is illuminated while steam bath cycles are running.
- Water cycle icon indicates when water is boiling inside in steam generator.
- Use the Menu Button to change cycle time, and switch between ºF and ºC. Toggle between cycles when steam is off by pressing menu button.
- 2 User Buttons: Pressing these buttons during a cycle will change the temperature and remaining time left on that cycle.
- Control included in the SimpleSteam™ Kit
- Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup. Easily wipe clean without chemicals or cleaners.
- Control must be installed inside the shower area
- 2-Year (Consumers Use) Warranty
SteamScape™ Round Steam Head
- Steam Head features 360° dispersion
- Essential oil reserve on top of steam head
- Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
- 2-Year (Consumers Use) Warranty
Includes
- Round Control
- 35-Ft. Multi-Conductor Cable
- Strain Relief Clamp
- Silicone Sealant
- 6-Pin Coupler
- Round Steamhead
- Silicone Cover
Specifications
SteamScape™ Round Control | |
---|---|
Product Dimensions | 4"Diameter x .63"Depth |
Mounting Height | 48" Above the Floor |
Temperature Range | 60°F - 125°F |
Time Programmable | Up to 60 Minutes |
SteamScape™ Round Steam Head | |
---|---|
Product Dimensions | 3.38"Diameter x 1.25"Depth |
Steam Head Mounting Height | 12"-18" Above the Floor, 6" Above Rim of Tub |
Technical
Installation and Operation Manual
Technical Specifications
