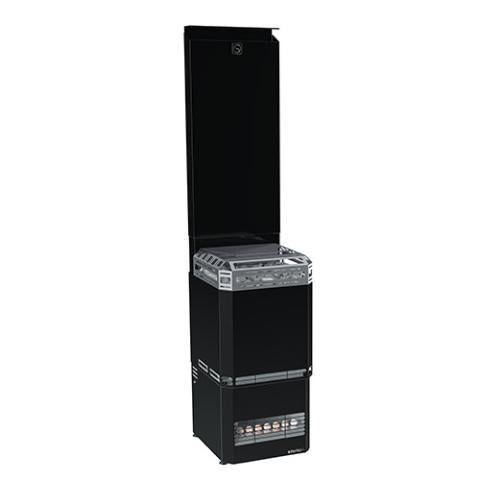

Saunum AIR L 10 Sauna Heater
Air Series, 9.8kW Sauna Heater w/Climate Equalizer, Black
Model: AIR 10 L
SKU: 4745090018400
Sauna stones (265 lbs, 8 boxes required) and Sauna Control sold separately
See Shipping Tab
Description
Saunum Air 10 L is a unique heater with a sauna climate regulating system that is ideal for creating an extraordinary sauna session in a more intensively used sauna. The large stone volume of the Saunum Air 10 L and the patented air-blending system ensure exceptional steam that is soft and long, and evenly distributed throughout the sauna.
Features
- Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.
- European Design – With elegant black steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 265 pound stone capacity (required 8 boxes sold separately).
- Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

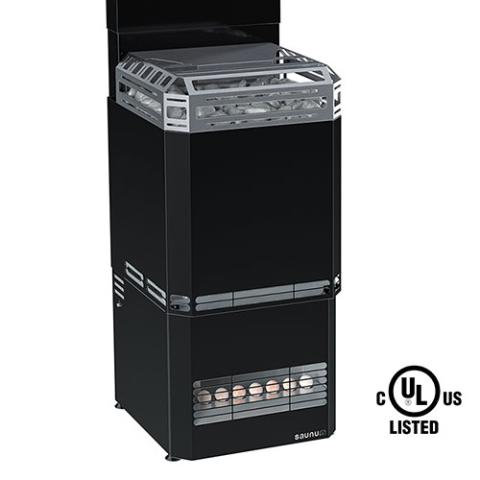

- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy - Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For sauna rooms from 247 to 459 cu. ft.
Includes
- Saunum AIR L 10 Sauna Heater
- Hot Air Intake Cap
- Hot Air Intake
- Stone Basket
- Air Outake Grille
- Cool Air Intake Valve
- Protective Grill
- Himalayan Salt Spheres (7)
- Himalayan Salt Tray
- Temperature Sensor
- Installation and Operation Manual
- 2-Year Warranty (Consumers Use)
Specifications
Heat Equalizing System | |
---|---|
Model | Air 10 L |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
Ceiling Hot Air Intake | 17.72" x 4" (450.09 x 101.6 mm) |
Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
Cool Air Intake Size | 2" x 2.75" (50.8 x 69.85 mm) |
Blended Air Output | 4.31" x 14.13" (109.47 x 358.90 mm) |
Himalayan Salt & Aroma Tray Type | Removable, Slotted |
Himalayan Salt & Aroma Tray Size | 16.5" x 4.5" (419.1 x 111.76 mm) |
Sauna Heater System | |
---|---|
Model | Air 10 L |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heater Body Style | Solid Steel - Nordic Black |
Heating Elements | Incoloy (Stainless Steel) |
Heating Element Protection (included) | Air Tunnels, Slotted Stainless Steel, Three |
Room Size | 247-459 (7-10 Cubic Meters) |
Wattage Rating | 9800 |
Operating Voltage | 240VAC |
Phase | 1 |
Amperage | 41.66 |
Weight | 147 lbs (67 kg) |
Shipping Weight with Stones | 412 lbs (187 kg) |
Product Depth | 18.1" (460mm) |
Product Width | 19" (483mm) |
Product Height (including telescopic air intake) | 72.25-95" (1850-2400mm) |
Minimum Ceiling Height | 71" (1803.4 mm) |
Stone Capacity | 265 lbs (120kg) |
Stone Size (sold separately) | 2" - 4" (5-10 cm) |
Circuit Breaker | 50 Amp |
Wire Size to Power Unit | #6 +N + G |
