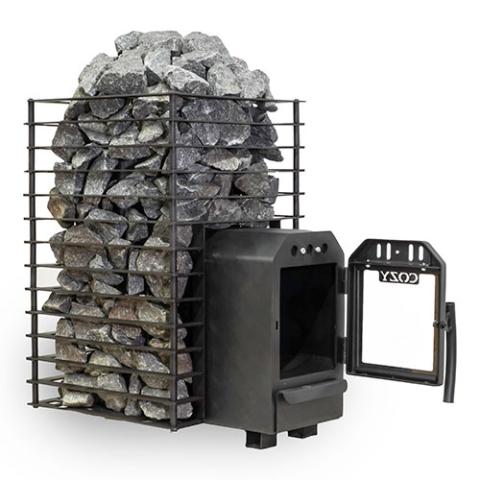

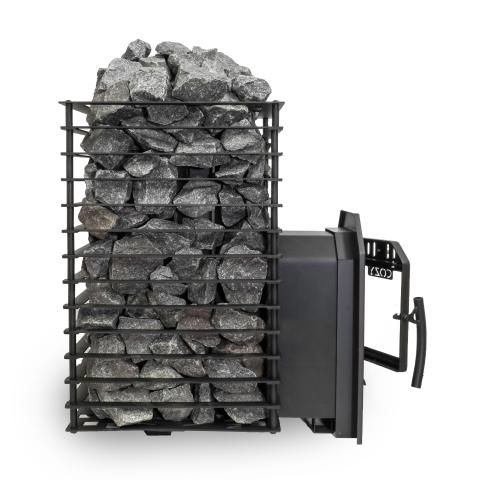

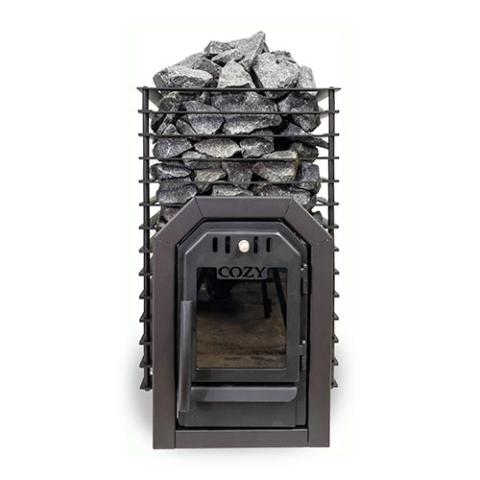

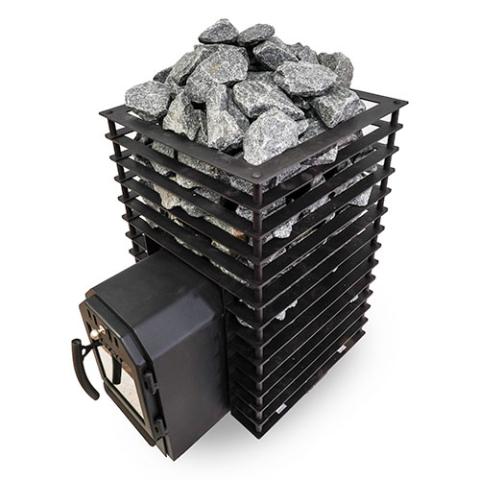

Cozy Heat Quattro Thru-Wall Sauna Stove
Wood Burning Sauna Stove, Up to 18kW
Model: COZY QUATTRO TW
SKU: COZYQUATTROTW12
The convenient Cozy Quattro 12 TW through-the-wall wood-burning sauna stove is hand-made in Estonia, where sauna bathing is a daily ritual. Wood-burning stoves create a mild and long-lasting heat and are designed for ladling water over the hot stones to create a satisfying steam sauna. Its through-the-wall design allows you to load firewood from outside your sauna.
Sauna Stones sold separately.
Coming June 2024.
Description
The stylish and elegant Quattro 12 TW from Cozy eat will complement the rustic appearance of your home sauna, and its through-the-wall design allows you to load firewood from outside your sauna. COZY has taken the ancient wisdom of building a sauna to a higher level. This unique wood-burning stove is hand-made in Estonia, where sauna bathing is part of daily life.
Wood-fired sauna stoves produce a mild, long-lasting heat and are designed for ladling water over the hot stones to create a luxurious steam sauna. The most sensitive part of the wood-burning heater, the flame cutter, is made of 5mm-thick stainless steel, making COZY heaters extremely durable.
The Quattro 12 TW's clean lines and minimalist design create an understated elegance, and the large viewing window allows you to view the mesmerizing glow of the dancing flames. Experience the timeless allure of a traditional wood-fired sauna and discover the true essence of relaxation with the Cozy Heat Quattro 12 TW.
Features
- Square design
- Wood-burning
- Steel Construction
- Smoke gases are 6x cleaner
- German BIMSCH certificate
- Stove utilizes 25_-40_ less fuel than comparable sauna stoves
- Boasts minimal safety distances
- Mild and long-lasting heat
- Floor mount thru-wall
- Sauna room sizes:
- 12kW - 210 to 423 cu.ft.
- 18kW - 318 to 636 cu.ft.
- Stone Requirements:
- 12kW - minimum of 265lbs of stones
-
18kW - minimum of 353lbs of stones
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- 2-Year Warranty
- Designed and engineered in Estonia
Includes
- Outer frame of the heater
- Chimney pipe
- Heater body
- Cleaning hatch
- Heater door with glass
- Ash box
- Installation and operation manual
- 2-Year Warranty
Specifications
| Model | Cozy Quattro Thru-Wall 12 |
|---|---|
| Kilowatt Rating | 12kW |
| Primary Fuel | Wood |
| Maximum Firewood Length | 2.99" (329mm) |
| Diameter of Firewood | 3.14" to 4.72" (80mm-120mm) |
| Minimum Cubic Feet | 210 Cu. Ft. |
| Maximum Cubic Feet | 423 Cu. Ft. |
| Minimum Room Height | 72" (1828mm) |
| Flue Connection Location | Top |
| Heater Weight | 159 lbs |
| Shipping Weight with Sauna Stones | 424 lbs |
| Safety Distance Front to Back | 54.91" (1395mm) |
| Safety Distance Right to Left | 32.87" (835mm) |
| Stove Depth | 26.18" (665 mm) |
| Stove Width | 17.32" (440 mm) |
| Stove Height | 27.55" (700 mm) |
| Model | Cozy Quattro Thru-Wall 18 |
|---|---|
| Kilowatt Rating | 18kW |
| Primary Fuel | Wood |
| Maximum Firewood Length | 15.74" (400mm) |
| Diameter of Firewood | 3.14" to 4.72" (80mm-120mm) |
| Minimum Cubic Feet | 317 Cu. Ft. |
| Maximum Cubic Feet | 635 Cu. Ft. |
| Minimum Room Height | 82" (2096mm) |
| Flue Connection Location | Top |
| Heater Weight | 220 lbs |
| Shipping Weight with Sauna Stones | 572 lbs |
| Safety Distance Front to Back | 59.43" (1510mm) |
| Safety Distance Right to Left | 39.75" (1010mm) |
| Stove Depth | 30.70" (780 mm) |
| Stove Width | 20.27" (515 mm) |
| Stove Height | 28.74" (730 mm) |
Shipping
The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project success.
Technical
Installation and Operation Manual
