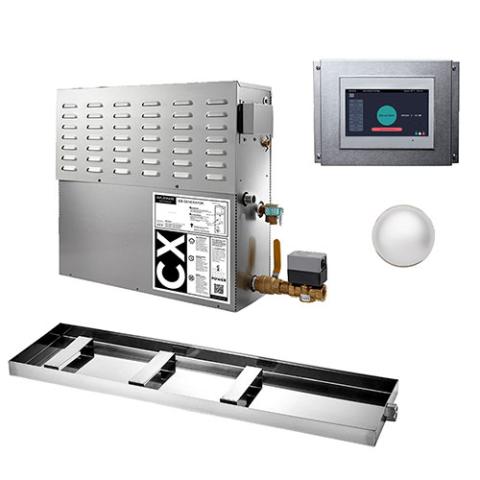

Mr.Steam CX Generator Package

The Mr.Steam CX Generator Package is next generation steam power. Ideal for larger spaces, the CX0360-CX1000 is designed for steam rooms with dimensions up to 1000 cubic feet (CF). The CX Generator is engineered for peak performance and features quieter power, ease of installation, and a touch-screen control. You get everything you need to create the perfect steam experience with the combination of a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory installed AutoFlush System. The result is a touchpoint experience that becomes memorable, revitalizing, and ultimately more gratifying.

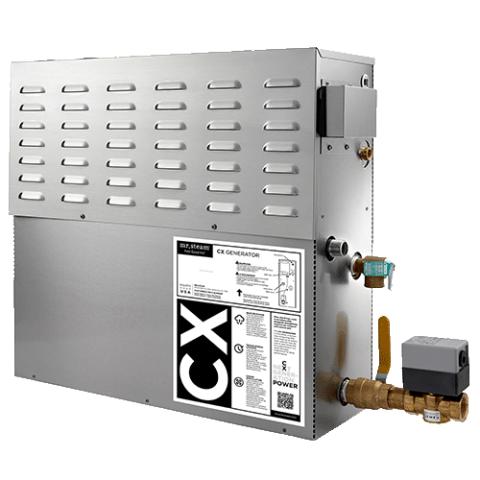

CX Generator

• Industrial, large diameter, serviceable heating element
• Electronic water-level control system
• Stainless steel jacket prolongs life
• Quieter than a pressurized system
• Program to preheat the steam room at the start of each day
• Internal temperature shut-off to prevent low water conditions and integral high water cut-off

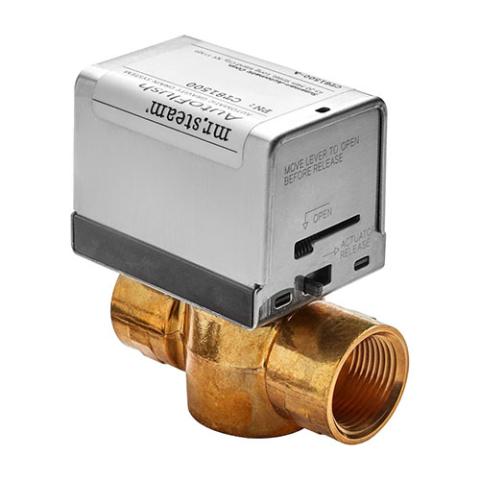

• Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
• Compact size offers more flexibility with room design and straightforward installation
• All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
• Designed for commercial applications that require continuous or near continuous use so they are available to use all day
• Dimensions: 33.9"L x 7.9"W x 22"H (including factory installed AutoFlush System)

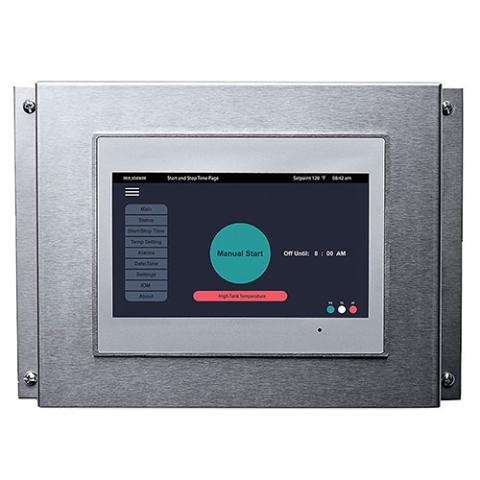

CX Control

• 7” color touch screen control with menu driven user interface
• Easily set on/off time and view system status while the unit is running
• Controls multiple CX Generators in series
• Dimensions: 7.1"L x 1.6"W x 5.3"H

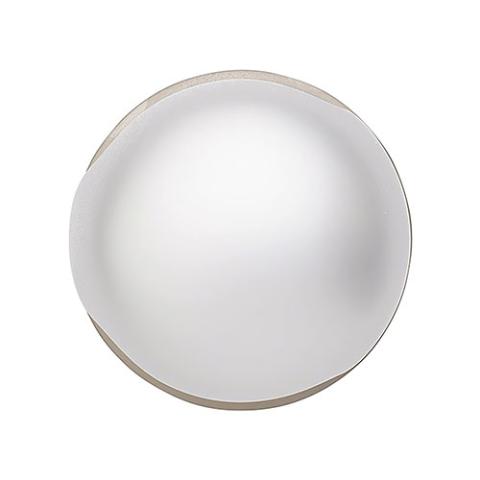

Commercial SteamHead

• Complete with polycarbonate Acrylic Shield
• Comes in a Polished Chrome finish
• No assembly of moving parts required
• Dimensions: 3.1”Diameter x 1.8”W

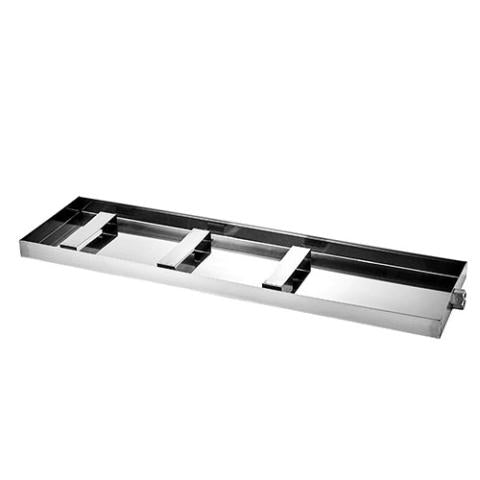

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface with steam generator placed inside
• Dimensions: 33"L x 1.5"W x 9"H

CX Generator

• CX Generator
• Installation and Operation Manual
• 1-Year Limited Warranty

CX Control

• CX Control
• Installation and Operation Manual
• 1-Year Limited Warranty

Commercial SteamHead

• Commercial SteamHead
• Installation and Operation Manual
• 1-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 1-Year Limited Warranty
