Amerec IT1
Mounting To:Wall
Quantity:
Thermostat Control, AI Series
Model: IT1
SKU: 9226-30

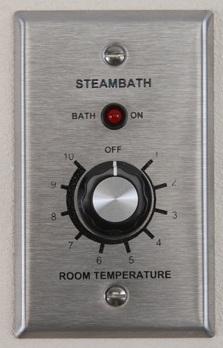

With the Amerec IT1 Electronic Room Temperature control, set the desired steam room temperature and the boiler makes it happen.
Description
The Amerec IT1 thermostat was designed for use with all AI series boilers requiring 1 room installation. This kit includes thermostat control, sensor, cables, and (2) 3/4" Chrome steam heads.
Features
- Adjustable room temperature, 90º-124º degrees Fahrenheit
- Boiler or remote mounting capability
- Mode indicator light
- Off position available when I60 switch is not installed
- 5V DC operation
Includes
- IT1 thermostat control (4-1/2”W x 2-1/2”H)
- Room sensor (7/8” diameter mounting hole)
- (2) 3/4" Chrome steam heads
- 3-lead, 25’ IT1 control cable
- Mounting hardware
- 2-lead, 25’ IT1 sensor cable
- Installation and operation manual
- Limited warranty
Specifications
| Model | IT1 |
|---|---|
| Shipping Weight | 5 lbs |
| DC Voltage | 5V DC |
| Control "Rough In" Cut Out | 2-1/8" x 3-3/4" |
| Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Generator Control Connection | 3 Position Terminal Block |
| Generator Control Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
| Width | 2-3/4" |
| Depth | 1" |
| Height | 4-1/2" |
Technical
Installation and Operation Manual
IT IOM.pdf2.06 MB
