Amerec IT2-12-24
Amerec IT2-12-24

Amerec IT2-12-24

Sale price$1,985.00
Mounting To:Wall
Quantity:

2-Room Thermostat, AI12-AI24 Models

Model: IT2-12-24

SKU: 9226-20

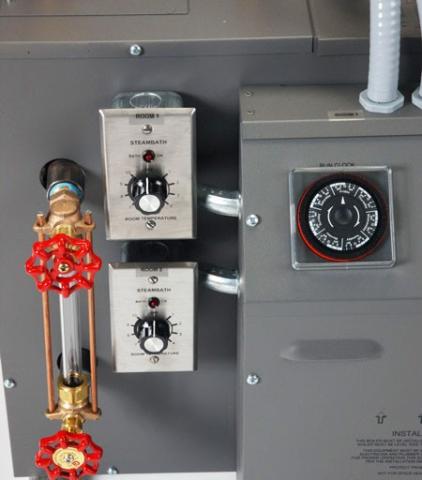

With the addition of the Amerec IT2 Electronic Room Temperature Control option, two rooms may be serviced by one AI boiler.

Description

The Amerec IT2 thermostat was designed for use with AI series boilers requiring 2 room installation. This kit includes (2) IT1 thermostat controls, (2) sensors, cables, (1) steam solenoid valve assembly, and (4) 3/4" Chrome steam heads. For use with 12-24kW 208V, 240V and 480V models.

Features

  • Adjustable room temperature, 90º-120º degrees Fahrenheit
  • Boiler or remote mounting capability
  • Mode indicator light
  • Off position available when I60 switch is not installed
  • 5V DC operation

Includes

  • Room sensor (7/8” diameter mounting hole)
  • IT2 thermostat control (4-1/2 x 2-1/2”)
  • (4) 3/4" Chrome steam heads
  • 3-lead, 25’ IT2 control cable
  • Steam solenoid valve, 120V AC, 3/4"NPT
  • Mounting hardware
  • 2-lead 25’ IT2 sensor cable
  • Installation and operation manual
  • Limited warranty

Specifications

Model IT2
Shipping Weight 5 lbs.
DC Voltage 5V DC
Control "Rough In" Cut Out 2-1/8" x 3-3/4"
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 3 Position Terminal Block
Generator Control Cable 25', 3 Conductor, 22 AWG, Shielded Cable
Width 2-3/4"
Depth 1"
Height 4-1/2"

Technical

IT IOM.pdf2.06 MB
