Amerec IT2-30-48
Mounting To:Wall
Quantity:
2-Room Thermostat, AI30-48 Boilers
Model: IT2-30-48
SKU: 9226-22
With the addition of the Amerec IT2 Electronic Room Temperature Control option, two rooms may be serviced by one AI boiler.
Description

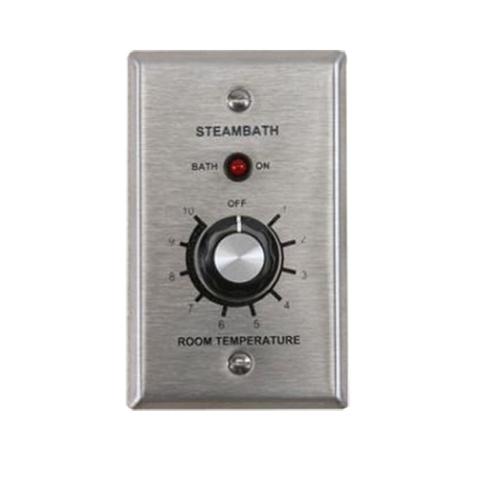

The Amerec IT2 thermostat was designed for use with AI series boilers requiring 2 room installation. This kit includes (2) IT1 thermostat controls, (2) sensors, cables, (1) steam solenoid valve assembly, and (4) 3/4" Chrome steam heads. For use with 12-24kW 208V, 240V and 480V models.
Features
- Adjustable room temperature, 90º-120º Fahrenheit
- Mode indicator light
- Off position available when I60 switch is not installed
- 5V DC operation
Includes
- Room sensor (7/8” diameter mounting hole)
- IT2 thermostat control (4-1/2 x 2-1/2”)
- (4) 3/4" Chrome steam heads
- 3-lead, 25’ IT2 control cable
- Steam solenoid valve, 120V AC, 3/4"NPT
- Mounting hardware
- 2-lead 25’ IT2 sensor cable
- Installation and operation manual
- Limited warranty
Specifications
| Model | IT2-30-48 |
|---|---|
| Shipping Weight | 5 lbs. |
| DC Voltage | 5V DC |
| Control "Rough In" Cut Out | 2-1/8" x 3-3/4" |
| Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Generator Control Connection | 3 Position Terminal Block |
| Generator Control Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
| Width | 2-3/4" |
| Depth | 1" |
| Height | 4-1/2" |
Technical
Installation and Operation Manual
IT IOM.pdf2.06 MB
