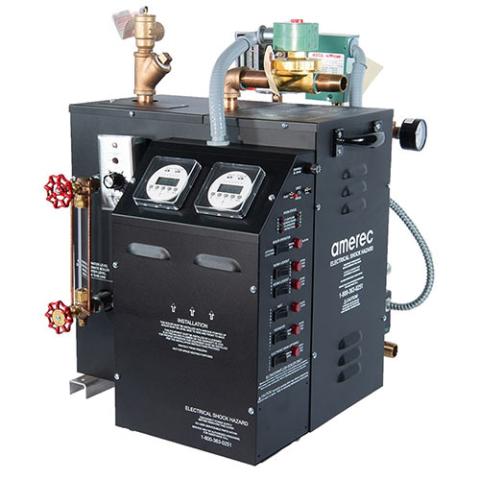

AI Series 24kW Commercial Steam Room Generator

Model: AI-24

SKU: 9006-240

The Amerec AI-24 commercial steam shower generator is engineered for the most demanding commercial health club steam rooms with dimensions up to 1,200 cubic feet (CF). The Amerec AI- series includes Two 3/4" NPT steam heads. Required control sold separately.

See Shipping Tab

Description

The AI-24 can power one or two large steam rooms with dimensions between 900 to 1,200 adjusted cubic feet (ACF).

The Amerec AI-24 electric steam room boiler features an ASME-certified pressure vessel for efficient operation, a water level sight glass, a temperature safety system, a 3-level water sensing system with low water cutoff, LED indicator lights with diagnostics, and a variety of other features.

Health clubs, day spas, hotels, and commercial wellness facilities across the country rely on Amerec AI Series steam boilers for easy on-site maintenance and hands-off, automated operation. AI boilers feature all-steel construction to minimize corrosion.

The AI-24 commercial steam boiler is UL and cUL listed and complies with ASME requirements to ensure safety and quality. All AI units are delivered pre-assembled and ready to install.

The Amerec AI-24 steam generator is available in 208V single-phase (9006-240), 240V single-phase (9006-241), 208V three-phase (9006-243), 240V three-phase (9006-244), and 480V three-phase (9006-246) configurations.

The AI-24 requires the use of a control for operation. Controls allow facility operators to adjust temperature, duration, and other important features. Select the available control with features that best suit your preferences.

We recommend using the available ADI Automatic Drain System with the AI-24 unit. The ADI Automatic Drain System automatically drains the generator tank after each use to prevent sludge and scale build-up.

SteamSaunabath is proud to be an authorized Amerec partner and offer the full line of Amerec products and parts.

We guarantee the lowest price. If you see a lower price advertised for this item elsewhere, give us a call!

SteamSaunaBath is the bathing environment experts. We specialize in steam room and sauna design, sales, installation, maintenance, and repair services. Our half-century of hands-on experience means that we are uniquely qualified to ensure the success of your facility’s bathing space and an unparalleled steam bathing experience. To contact a SteamSaunaBath Bathing Specialist, call: (800) 707-2862.

NOTE: Additional Freight Charges May Apply.

Features

  • Pressurized vessel for instant steam
  • Durable electronic components
  • Low water cut-off with manual reset
  • 3/4” drain port
  • Room high limit temperature safety system
  • Operating, electronic high limit pressure control systems
  • Sight glass
  • Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
  • Alarm circuit panic button
  • ASME safety valve
  • ASME certified low-pressure operation vessel

Includes

  • AI-24 steam boiler
  • Two 3/4” NPT steam heads
  • Installation and operation manual
  • Limited warranty

Specifications

Model AI-24
Shipping Weight 225 lbs
Minimum Adjusted Cubic Feet 900
Maximum Adjusted Cubic Feet 1200
Kilowatt Rating 24 KW
Water Supply Connection 1/2" NPT
Generator Steam Line Connection 3/4" NPT
Steam Head Connection 3/4" NPT
Drain Connection 3/4" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve 15 PSIG
Control "Rough In" Cut Out 2-1/8" x 3-1/4"
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 3 Position Terminal Block
Generator Control Cable 25', 3 Conductor, 22 AWG, Shielded Cable
Width 17-1/2"
Depth 20-3/4"
Height 23-1/4"

Shipping

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project success.

Required for Operation:

Amerec IT1

Price: $620.00


Amerec D24/7

Price: $335.00


Amerec IT2-12-24

Price: $1,985.00
